STL150N3LLH5 - N-channel 30 V, 150 A STripFET™ H5 Power MOSFET

The STL150N3LLH5 is a high-performance N-channel Power MOSFET presented by STMicroelectronics, which is a part of their STripFET H5 series. This MOSFET is designed to deliver the optimum combination of high switching performance and low on-state resistance (R<sub>DS(on)), making it an ideal choice for a wide range of power management applications.

Key Features

• Low Threshold Voltage (V<sub>GS(th)): This MOSFET has a low gate threshold voltage, which allows for efficient operation even at lower gate voltages, enhancing its compatibility with modern control circuits and reducing power losses.
• High Continuous Drain Current (I<sub>D): With a continuous drain current of 150 A, this device can handle high current loads, making it suitable for demanding power applications.
• Low On-Resistance (R<sub>DS(on)): The STL150N3LLH5 boasts an exceptionally low on-state resistance, which translates to reduced conduction losses and improved overall efficiency of the system.
• 100% Avalanche Tested: Ensuring reliability, this MOSFET is thoroughly tested for avalanche ruggedness, which guarantees its performance under extreme conditions.
• High Switching Speed: Its fast switching capability ensures minimal switching losses and is ideal for high-frequency applications.

Applications

The STL150N3LLH5 is versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Control Circuits
• Power Management Solutions
• Automotive Applications
• High-Efficiency Power Conversion

Package and Environmental Compliance

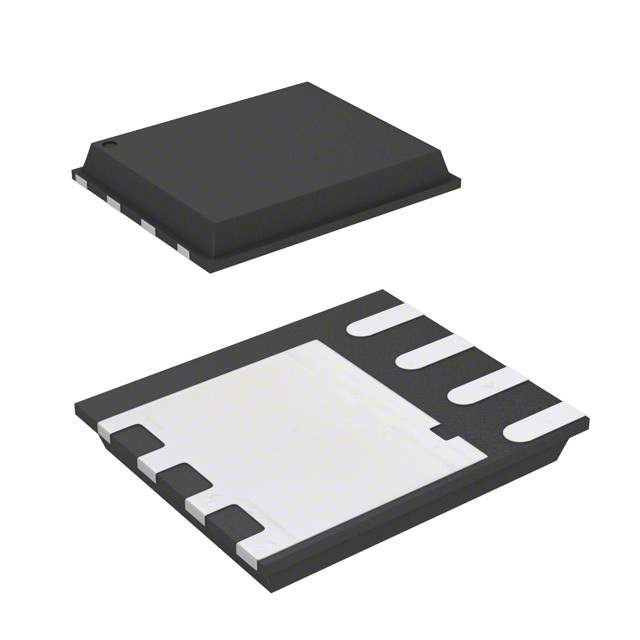

This MOSFET is available in a PowerFLAT 5x6 package which is not only space-saving but also offers excellent thermal performance. STMicroelectronics is committed to environmental sustainability and ensures that the STL150N3LLH5 complies with RoHS regulations, minimizing the environmental impact.
