STL20DN10F7 - STMicroelectronics

The STL20DN10F7 is a high-performance, N-channel Power MOSFET presented by STMicroelectronics, a leader in semiconductor solutions. This device is part of ST's STripFET™ VII DeepGATE™ technology, which ensures optimized performance in terms of on-resistance and switching behavior, making it an excellent choice for a wide range of power management applications.

With a drain-source voltage (V<sub>DS) of 100V, the STL20DN10F7 is designed to handle high-efficiency switching operations. Its low on-state resistance (R<sub>DS(on)) of just 20 mΩ at V<sub>GS = 10 V contributes to reduced conduction losses, enhancing overall system efficiency. The device is capable of sustaining a continuous drain current (I<sub>D) of up to 80 A, making it robust enough for demanding tasks.

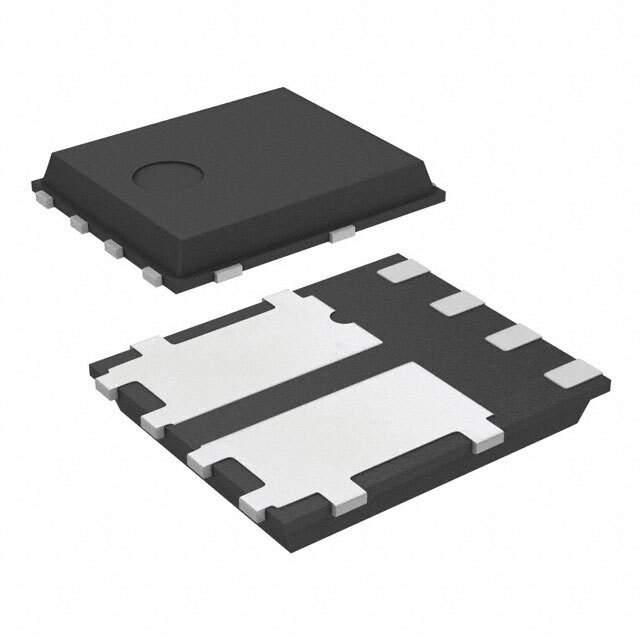

The STL20DN10F7 is housed in an industry-standard PowerFLAT™ 5x6 package, which is known for its compact size and excellent thermal performance. This package allows for a high power density and is ideal for space-constrained applications where heat dissipation is a critical factor. The PowerFLAT™ package also enables surface-mount technology (SMT), which simplifies the PCB design process and accelerates manufacturing.

Key features of the STL20DN10F7 include 100% avalanche tested ruggedness, very low intrinsic capacitances, and extremely low gate charge (Q<sub>g). These characteristics make the MOSFET a suitable choice for high-frequency switching in power supplies, DC-DC converters, motor control circuits, and other power-intensive applications.

STMicroelectronics ensures that the STL20DN10F7 meets the highest quality and reliability standards. The device is compliant with the stringent RoHS and Halogen-Free environmental directives, making it a sustainable choice for eco-conscious designs. Whether you're developing solutions for industrial, automotive, or consumer electronics, the STL20DN10F7 offers a blend of efficiency, reliability, and performance that can help you achieve your design objectives.
