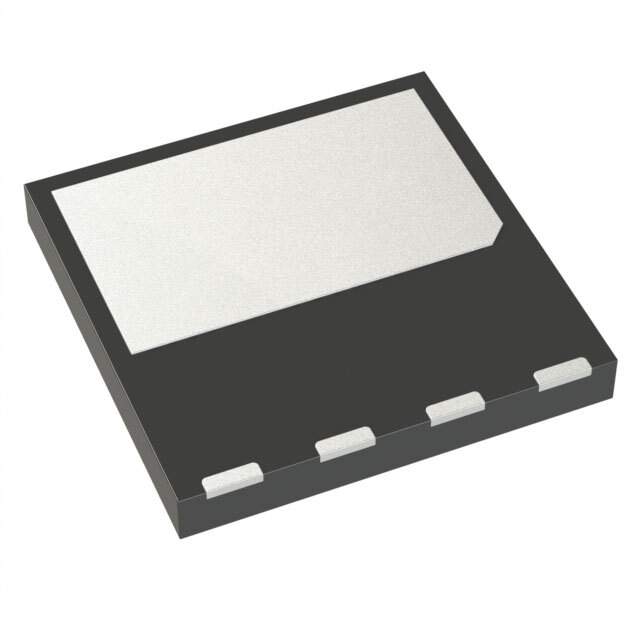

STL21N65M5 - Power MOSFET by STMicroelectronics

The STL21N65M5 is a state-of-the-art power MOSFET designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This particular MOSFET is part of the MDmesh™ M5 series, which is renowned for its excellent energy efficiency and performance in high-voltage applications. With a 650V drain-source breakdown voltage (V<sub>DS), the STL21N65M5 is particularly suited for demanding power supply and conversion systems.

One of the primary features of the STL21N65M5 is its extremely low on-state resistance (R<sub>DS(on)), which stands at only 0.190 ohms. This low resistance ensures minimal power dissipation during operation, leading to higher efficiency and reduced thermal challenges within electronic circuits. The device is also characterized by its high threshold voltage (V<sub>GS(th)), which provides a wide safety margin and enhances its reliability in various applications.

The STL21N65M5 utilizes STMicroelectronics' proprietary MDmesh™ technology, which combines a vertical structure with a super-junction design. This technology allows for reduced conduction losses and lower switching frequencies, which are crucial for applications that require high efficiency, such as switch-mode power supplies (SMPS), lighting applications, solar inverters, welding equipment, and electric vehicle chargers.

For ease of integration into various circuits, the STL21N65M5 comes in a TO-220 package, which is widely used and recognized for its robustness and ease of mounting. The package includes three leads, which facilitate simple gate, drain, and source connections. Additionally, the device is designed to withstand high temperatures, ensuring stable performance even under stressful conditions.

The STL21N65M5 also features fast switching speeds, which are essential for reducing switching losses in high-frequency power conversion systems. This capability, combined with the low gate charge (Q<sub>g), enables designers to achieve optimal efficiency in their power management designs.

In summary, the STL21N65M5 from STMicroelectronics is a high-performance power MOSFET that offers low on-resistance, high breakdown voltage, and fast switching speeds. It is an ideal choice for engineers looking to enhance the efficiency and reliability of their high-voltage power conversion systems.
