The STLD200N4F6AG is a state-of-the-art power MOSFET designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This device is part of the STripFET F6 series, which is known for its low on-state resistance and high switching performance, making it an excellent choice for a wide range of power management applications.

Key Features

• Low On-Resistance: With an RDS(on) value as low as 4.5 mΩ (max), the STLD200N4F6AG ensures high efficiency in power conversion, reducing heat dissipation and improving reliability.
• High Current Handling: This MOSFET can handle continuous drain currents up to 120 A, making it suitable for high-power applications.
• Optimized Gate Charge: The device features a low gate charge (Qg), which translates to reduced switching losses and faster switching speeds.
• 100% Avalanche Tested: Guarantees robust performance and reliability in harsh conditions.

Applications

The STLD200N4F6AG is versatile and can be used in various applications, including:

• High-efficiency DC/DC converters
• Synchronous rectification for switch mode power supplies (SMPS)
• Motor control applications
• Power management solutions

Package and Environmental Compliance

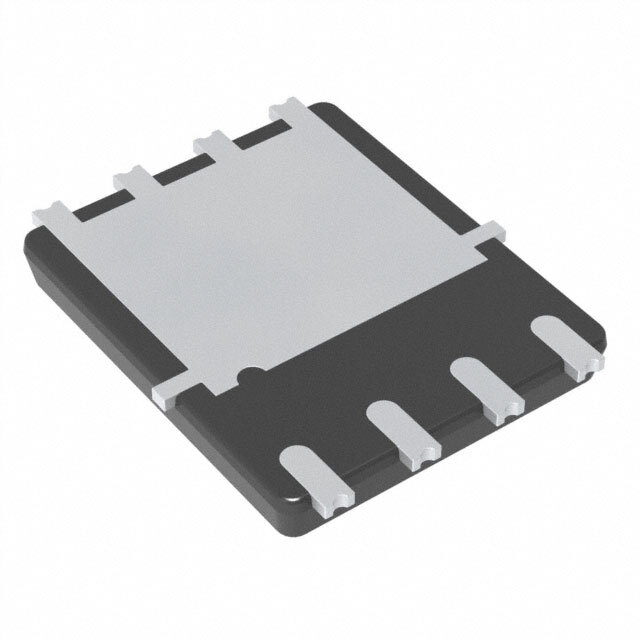

The STLD200N4F6AG is housed in a PowerFLAT 5x6 package, which is not only space-saving but also offers excellent thermal performance. Additionally, the product is compliant with the RoHS directive, which restricts the use of certain hazardous substances in electrical and electronic equipment.

Conclusion

With its combination of low on-resistance, high current capacity, and efficient switching characteristics, the STLD200N4F6AG from STMicroelectronics represents a reliable and high-performance solution for designers looking to optimize their power management systems. Its robust design and compliance with environmental standards further ensure that this MOSFET can meet the demands of modern electronic applications.
