The STOD02PUR is a highly integrated power supply IC designed by STMicroelectronics, tailored for driving AMOLED displays. This advanced power solution is well-suited for compact devices that require efficient power management for their display modules. The STOD02PUR stands out for its ability to provide a stable and reliable power source, ensuring optimal performance of AMOLED screens in various electronic devices such as smartphones, smartwatches, and portable media players.

Key Features

• Versatile Power Output: The IC is capable of providing a dual output, with a positive supply voltage up to 4.6V and a negative supply voltage down to -5.4V, which is essential for AMOLED display technologies.
• High Efficiency: It boasts a high power conversion efficiency, which not only enhances battery life but also minimizes heat generation, a critical aspect for handheld and wearable devices.
• Compact Design: The STOD02PUR is designed with a small footprint, making it ideal for integration into space-constrained applications without sacrificing performance.
• Integrated Protection Features: The device includes built-in protection mechanisms such as over-voltage, under-voltage, and thermal shutdown to safeguard the display and the IC from potential damage.

Applications

The STOD02PUR is suitable for a wide range of applications that utilize AMOLED display technology. Its high efficiency and compact size make it perfect for:

• Smartphones and Tablets
• Wearable Technology
• Portable Media Players
• Other compact consumer electronics with display requirements

Technical Specifications

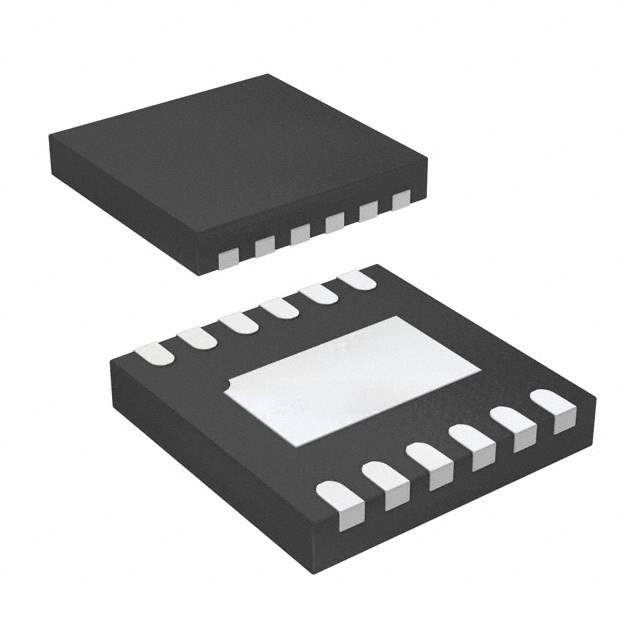

With an input voltage range of 2.4V to 5.5V, the STOD02PUR is versatile and can adapt to different power sources. The IC also supports a 1.2 MHz fixed switching frequency, which helps to reduce the size of the external components, further contributing to a reduction in overall design size. The device is available in a small 3x3 mm QFN16 package, which is highly advantageous for modern, sleek electronic designs.

Conclusion

The STOD02PUR from STMicroelectronics is an innovative power supply solution that offers a combination of efficiency, compactness, and reliability. It is engineered to meet the stringent requirements of AMOLED display technologies, making it a go-to choice for designers looking to enhance the performance and longevity of their electronic devices.
