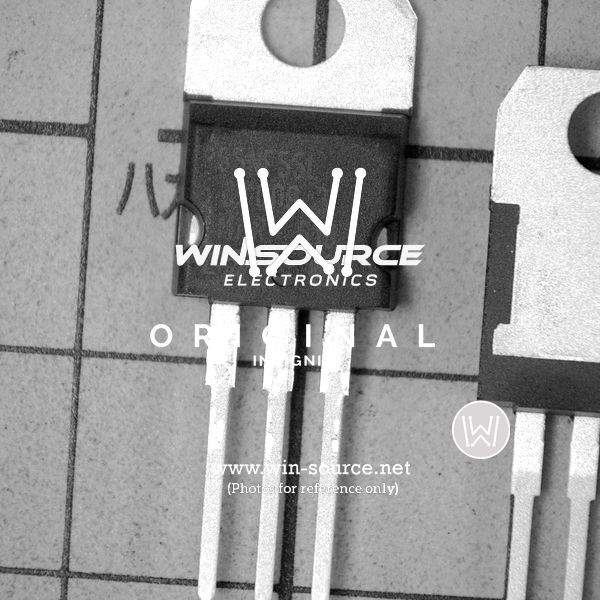

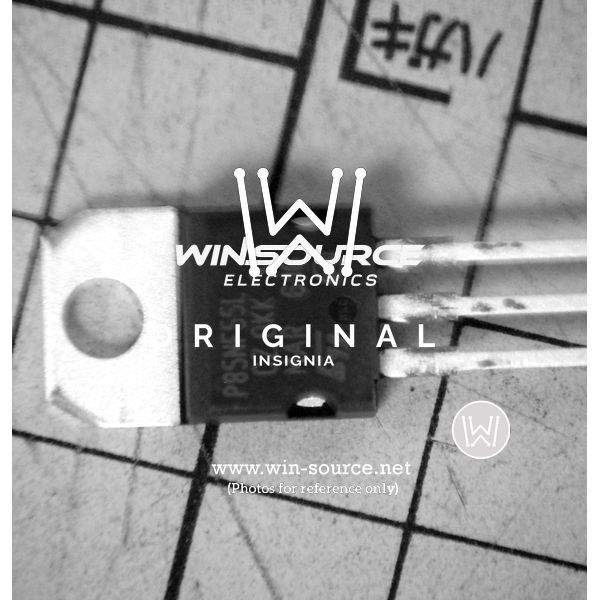

The STP85NF55L is a robust MOSFET transistor designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This power MOSFET is engineered to deliver high performance in a wide range of applications, making it a versatile choice for designers and engineers looking to enhance their power management systems.

Key Features

• Low On-Resistance: The STP85NF55L boasts an exceptionally low on-resistance (R<sub>DS(on)), which significantly reduces conduction losses and improves overall efficiency. This feature is particularly important in high-current applications where power dissipation should be minimized.
• High Current Capability: With a continuous drain current (I<sub>D) of 80A, this MOSFET can handle high current loads, making it suitable for demanding power applications such as motor control, power supplies, and automotive systems.
• 100% Avalanche Tested: This device is guaranteed to withstand high energy pulses in the avalanche and commutation modes, ensuring reliability and robustness in harsh operating conditions.
• Low Gate Charge: The reduced gate charge (Q<sub>g) allows for faster switching speeds and reduced switching losses, which is critical for high-frequency power switching applications.
• Improved Threshold Voltage: The STP85NF55L features a stable threshold voltage (V<sub>th) over the entire operating temperature range, which enhances device control and predictability.

Applications

The versatility of the STP85NF55L MOSFET makes it well-suited for a variety of applications, including:

• Switching regulators
• DC-DC converters
• Motor drivers
• Power management solutions
• Automotive applications
• High-efficiency power supplies

Quality and Reliability

STMicroelectronics is committed to providing high-quality products that meet the stringent requirements of the electronics industry. The STP85NF55L is no exception, offering excellent thermal performance and long-term reliability. Whether you're designing for consumer, industrial, or automotive markets, the STP85NF55L is a reliable choice for efficient power management.
