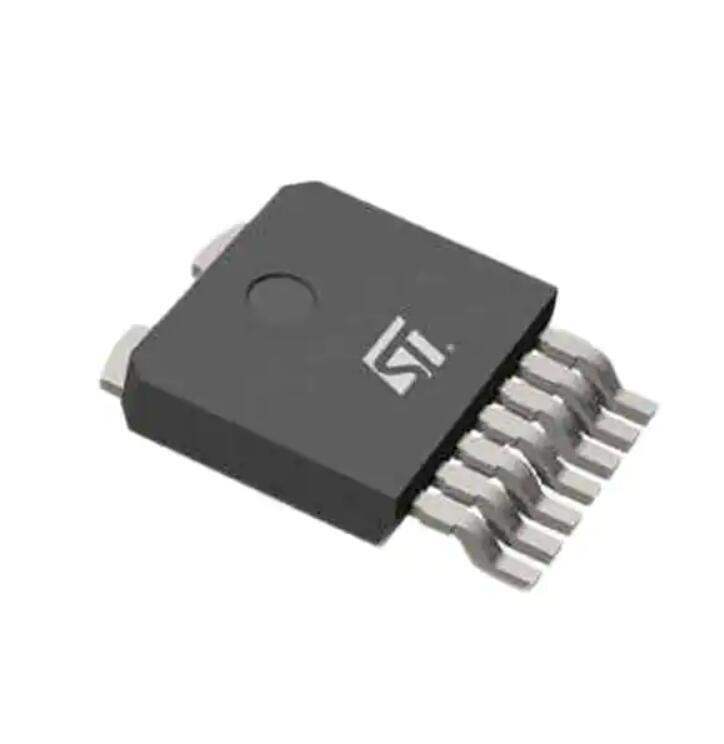

The VN7003ALHTR from STMicroelectronics is a cutting-edge high-side driver designed for automotive and industrial applications. This device is part of the VIPower M0-7 series, which is renowned for its robustness and reliability, making it an ideal solution for driving high-power loads with high efficiency.

With an operating voltage range of 5.5 V to 36 V, this high-side switch is versatile and can handle a wide array of applications. The VN7003ALHTR is capable of delivering a continuous current of up to 30 A, ensuring that it can supply sufficient power to even the most demanding loads. Its RDS(on) of 2.5 mOhm at 25°C is indicative of its low on-state resistance, which translates to reduced power dissipation and improved thermal performance.

The device is equipped with a range of protective features that safeguard it against harsh operating conditions. These include over-temperature protection, load current limitation, and active VCC clamp. Additionally, the VN7003ALHTR offers diagnostic functions via its multiplexed analog feedback, providing real-time information about the status of the device and the load it is driving.

The VN7003ALHTR is designed with an overvoltage shutdown feature, which ensures the protection of the device and the load in the event of voltage spikes. The device also includes under voltage shutdown, protecting the load from insufficient power conditions. This high-side driver is also compliant with the ISO 26262 standard, making it suitable for safety-critical automotive applications.

Packaged in a compact HSSOP24 package, the VN7003ALHTR is designed for space-constrained applications. Its thermal performance is enhanced by the exposed pad, which allows for efficient heat dissipation. The VN7003ALHTR is also characterized by a very low standby current, contributing to energy savings in the application it is used in.

In summary, the VN7003ALHTR high-side driver from STMicroelectronics is an advanced, robust solution for driving high-power loads in automotive and industrial environments. Its comprehensive protection features, diagnostic capabilities, and compliance with automotive safety standards make it a reliable and efficient choice for a wide range of applications.
