Same model may have multiple batches, images only for reference.

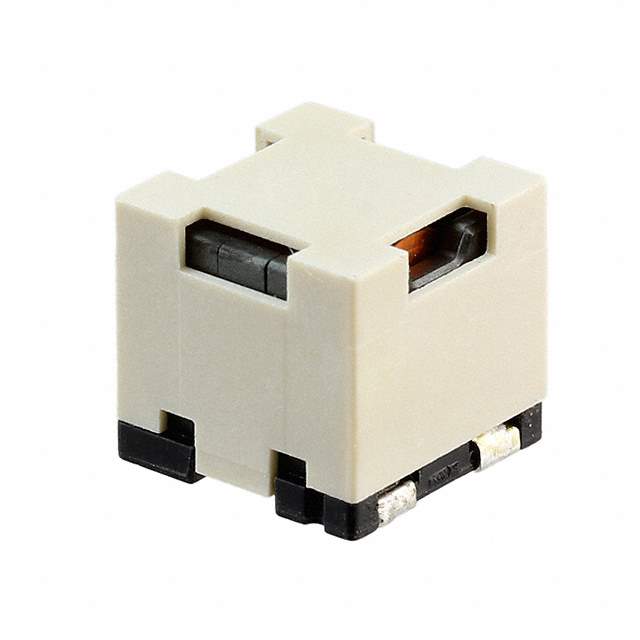

CDEPI106NP-220-S Real Image
Same model may have multiple batches, images only for reference.

CDEPI106NP-220-S

Part No CDEPI106NP-220-S
Manufacturer Sumida America Components Inc.
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 11UH SMD
Datasheet
CDEPI106NP-220-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 44μH
Inductance - Connected In Parallel 11μH
Current Rating - Parallel 16A
Current Rating - Series 2A
Current Saturation - Parallel 4.4A
Current Saturation - Series 2.2A
DC Resistance (DCR) - Parallel 11.5 mOhm
DC Resistance (DCR) - Series 46 mOhm
Temperature Range - Operating -40°C to 105°C
Mounting SMD (SMT)
Height 0.413" (10.50mm)
Win Source Part Number 131779-CDEPI106NP-220-S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDEPI106NP-220-S CAD Model

Description

Features and Benefits of CDEPI106NP-220-S

  • Compact and lightweight making it ideal for portable solutions.
  • Excellent thermal stability enhances durability.
  • High current carrying capacity suitable for demanding applications.
  • Reduced electromagnetic interference for cleaner signal transmission.

Applications and Project Uses

  • Wireless communication devices
  • Power management systems
  • Embedded systems
  • Security systems
  • Home automation devices

Built to deliver optimal performance, the CDEPI106NP-220-S is a versatile inductor, perfect for both consumer and industrial applications that require reliable performance.
