Same model may have multiple batches, images only for reference.

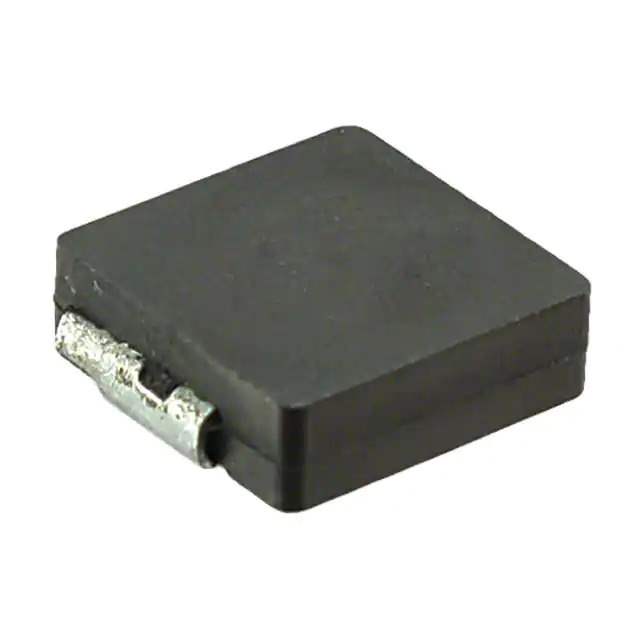

CDMC8D28NP-1R2MC Real Image
Same model may have multiple batches, images only for reference.

CDMC8D28NP-1R2MC

Part No CDMC8D28NP-1R2MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 1.2UH 12.9A 7 MOHM SMD
Datasheet
CDMC8D28NP-1R2MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDMC8D28
Package Tape & Reel
Product Status Active
Material - Core Metal Composite
Inductance 1.2 µH
Tolerance ±20%
Current Rating (Amps) 12.9 A
Current - Saturation (Isat) 12.2A
Shielding Shielded
DC Resistance (DCR) 7mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.374" L x 0.335" W (9.50mm x 8.50mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 578050-CDMC8D28NP-1R2MC
Ultra Librarian 3D Model Ultra Librarian CDMC8D28NP-1R2MC CAD Model

Description

The CDMC8D28NP-1R2MC is a shielded fixed inductor from Sumida America Components Inc.

  • Series: CDMC8D28
  • Size: 0.374" L x 0.335" W (9.50mm x 8.50mm)
  • Inductance: 1.2 μH
  • Seated Height: 0.118" (3.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 7mOhm max
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Current Rating: 12.9 A
  • Current Saturation (Isat): 12.2A
