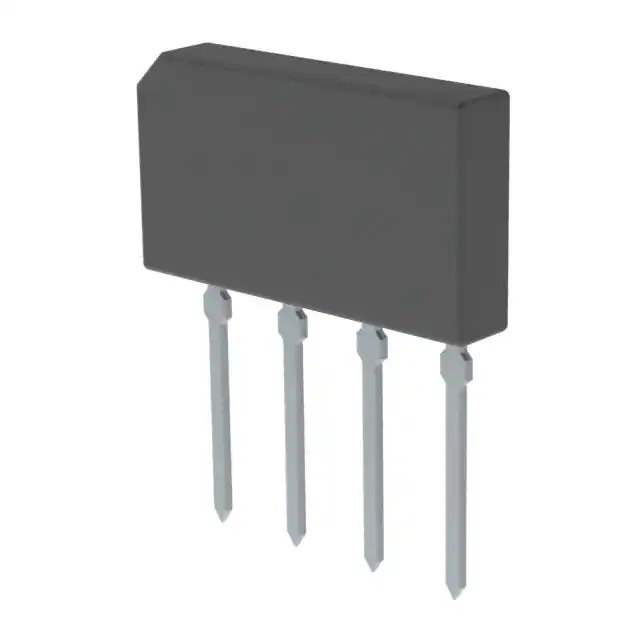

D2SB60 Real Image
Same model may have multiple batches, images only for reference.

D2SB60

Part No D2SB60
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 2A GBL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBL
Supplier Device Package GBL
Base Product Number D2SB60
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 104708-D2SB60
Ultra Librarian 3D Model Ultra Librarian D2SB60 CAD Model

Description

Overview

The D2SB60 is a robust bridge rectifier designed to convert AC to DC efficiently, suitable for low to medium-power applications.

Applications

  • AC to DC power converters
  • Domestic appliances
  • LED lighting systems
  • Fan motor controllers

Features and Benefits

  • Efficiency: High conversion efficiency, reducing energy consumption.
  • Reliability: Built to operate effectively under continuous loads.
  • Ease of Use: Simple integration into existing circuits.
