Same model may have multiple batches, images only for reference.

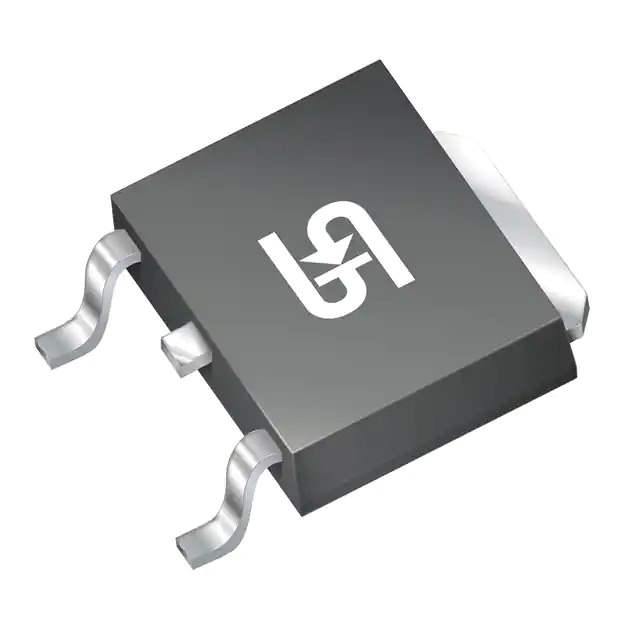

TS2940CP50 ROG Real Image
Same model may have multiple batches, images only for reference.

TS2940CP50 ROG

Part No TS2940CP50 ROG
Manufacturer Taiwan Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 5V 1A TO252
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Taiwan Semiconductor
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 26V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 0.8V @ 800mA
Current - Output 1A
Current - Quiescent (Iq) 15 mA
Current - Supply (Max) 110 mA
Protection Features Over Voltage, Thermal Shutdown, Transient Voltage
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252, (D-Pak)
Base Product Number TS2940
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1145526-TS2940CP50 ROG
Ultra Librarian 3D Model Ultra Librarian TS2940CP50 ROG CAD Model

Description

The 1145526-TS2940CP50 ROG is a voltage regulator integrated circuit designed for power management applications.

  • Output Type: Fixed
  • Voltage Output: 5V
  • Input Voltage: Up to 26V
  • Output Current: 1A (Maximum)
  • Dropout Voltage: 0.8V @ 800mA (Maximum)
  • Protection: Over voltage, thermal shutdown, and transient voltage
  • Package: TO-252-3, DPak
  • Mounting: Surface mount
  • Packaging: Tape & reel or cut tape
  • Package Quantity: 5,000 pieces
  • Manufacturer: Taiwan Semiconductor
  • Operating Temperature Range: -40°C to 125°C
