Same model may have multiple batches, images only for reference.

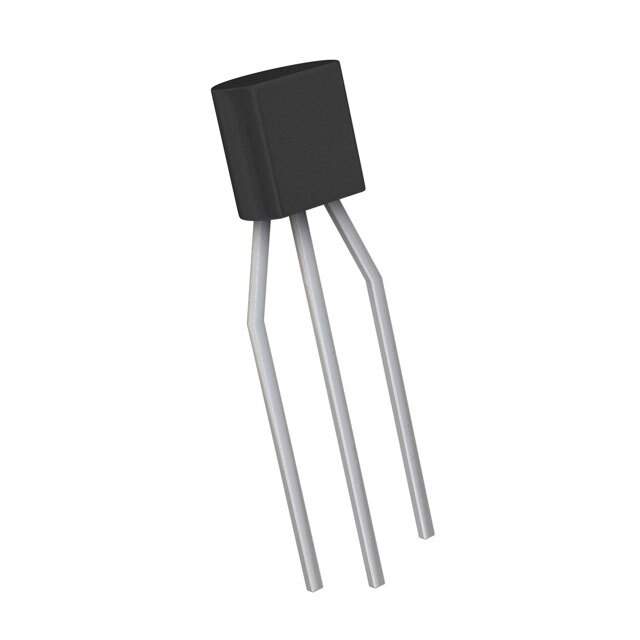

TSC966CT A3G Real Image
Same model may have multiple batches, images only for reference.

TSC966CT A3G

Part No TSC966CT A3G
Manufacturer Taiwan Semiconductor
Catalog Transistors (BJT) - Single
Description TRANSISTOR, NPN, 400V, 0.3A, 100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Taiwan Semiconductor Corporation
Packaging Tape & Box (TB)
Part Status Obsolete (End Of Life)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 300mA
Voltage - Collector Emitter Breakdown (Maximum) 400V
Vce Saturation (Maximum) at Ib, Ic 1V at 5mA, 50mA
Current - Collector Cutoff (Maximum) 1μA
DC Current Gain (hFE) (Min) at Ic, Vce 100 at 1mA, 5V
Power - Max 1W
Frequency - Transition 50MHz
Temperature Range - Operating 150°C
Mounting Style Through Hole
Manufacturer Package TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package TO-92
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800865-TSC966CT A3G
Ultra Librarian 3D Model Ultra Librarian TSC966CT A3G CAD Model

Description

The TSC966CT A3G is a transistor type NPN manufactured by Taiwan Semiconductor Corporation.

  • Mounting Style: Through Hole
  • Maximum Power: 1W
  • Frequency Transition: 50MHz
  • Temperature Range: 150°C
  • Packaging: Tape & Box (TB)
  • Supplier Device Package: TO-92
  • Manufacturer Package: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • Current Rating: 300mA
  • Voltage Rating: 400V
  • DC Current Gain (hFE): 100 @ 1mA, 5V
  • Vce Saturation (Maximum) @ Ib, Ic: 1V @ 5mA, 50mA
  • Supply and Demand Status: Sufficient
  • Popularity: High
