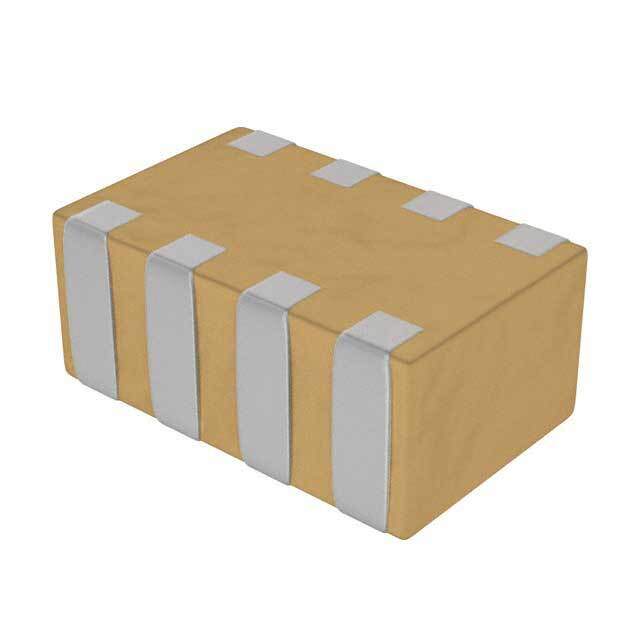

The TDK CKCL44C0G1H330KT010N is a multilayer ceramic capacitor (MLCC) designed for general-purpose applications requiring a high capacitance value and low voltage operation. It utilizes a C0G/NP0 dielectric, known for its excellent stability, making it suitable for critical timing and filtering applications where capacitance drift needs to be minimized. It is designed for surface mount technology (SMT).

Applications

• High-Frequency Circuits: Used in oscillators, filters, and other high-frequency circuits where stability is crucial.
• Timing Circuits: Employed in timing circuits where precise timing is required.
• Audio Equipment: Used in audio circuits for coupling and decoupling.
• Sensor Applications: Integrated into sensor circuits for signal conditioning and filtering.
• General-Purpose Circuits: Used in various general-purpose circuits for decoupling and filtering.

Features

• C0G/NP0 Dielectric: Provides excellent capacitance stability with temperature and voltage.
• Surface Mount Technology (SMT): Facilitates automated assembly, reducing manufacturing costs.
• Compact Size: Allows for high-density mounting on PCBs.
• High Q Factor: Offers low losses in high-frequency applications.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Exceptional Stability: The C0G/NP0 dielectric ensures exceptional capacitance stability, improving circuit performance.
• Cost Effective: SMT assembly reduces manufacturing costs.
• Space Saving: The compact size allows for more components to be placed on the PCB.
• Low Losses: The high Q factor minimizes losses in high-frequency applications.
• Environmentally Friendly: RoHS compliance ensures the capacitor meets environmental standards.

Additional Details

The CKCL44C0G1H330KT010N capacitor has a capacitance value of 33pF (330) and a voltage rating determined by the '1H' code (typically 50V). The '44' likely refers to the case size. The 'KT010N' likely indicates the packaging type and tolerance. The C0G dielectric ensures very little capacitance change over a wide temperature range and voltage. Further specifications can be found in the official TDK datasheet.
