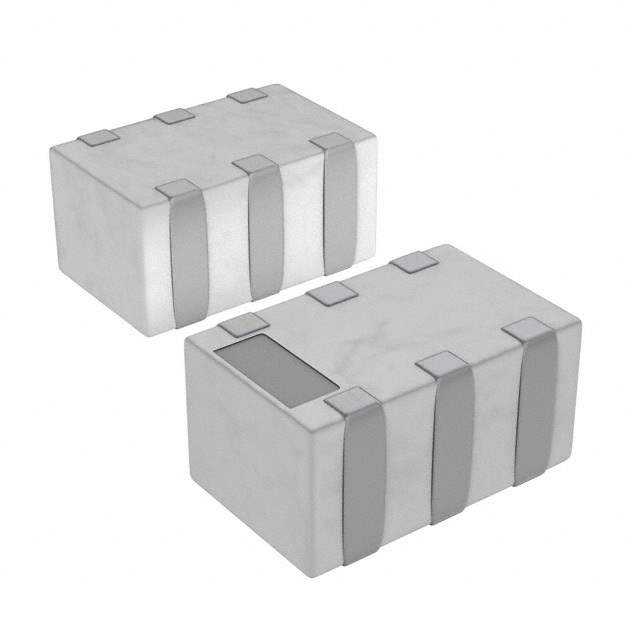

DPX201990DT-4051A2 Real Image
Same model may have multiple batches, images only for reference.

DPX201990DT-4051A2

Part No DPX201990DT-4051A2
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER
Datasheet
DPX201990DT-4051A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 800MHz to 945MHz / 1.57GHz to 1.99GHz
Low Band Attenuation (min / max dB) 25.00dB / 31.00dB
High Band Attenuation (min / max dB) 23.00dB / 28.00dB
Mounting SMD (SMT)
Dimension 0805 (2012 Metric), 6 PC Pad
Win Source Part Number 1033987-DPX201990DT-4051A2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DPX201990DT-4051A2 CAD Model

Description

The TDK Corporation DPX201990DT-4051A2 is a surface mount device (SMD) with a frequency range of 800MHz to 945MHz for low band and 1.57GHz to 1.99GHz for high band.

  • Frequency Range (Low Band): 800MHz to 945MHz
  • Frequency Range (High Band): 1.57GHz to 1.99GHz
  • Low Band Attenuation: 25.00dB to 31.00dB
  • High Band Attenuation: 23.00dB to 28.00dB
  • Dimension: 0805 (2012 Metric)
  • Pads: 6 PC
