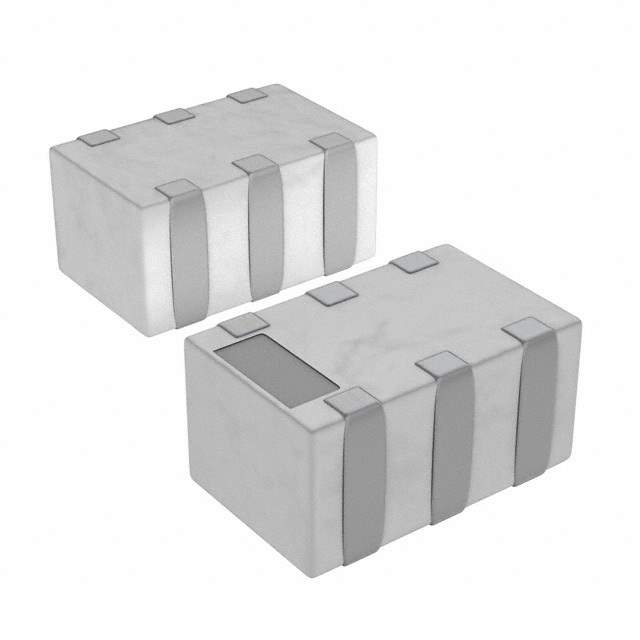

DPX202690DT-4049A2 Real Image
Same model may have multiple batches, images only for reference.

DPX202690DT-4049A2

Part No DPX202690DT-4049A2
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 832MHZ/2.2GHZ 0805 / Multilayer Diplexer
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Diplexer
Frequency Bands (Low / High) 704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz
Return Loss (Low Band / High Band) 17.9dB / 8.8dB
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), 6 PC Pad
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801868-DPX202690DT-4049A2
Ultra Librarian 3D Model Ultra Librarian DPX202690DT-4049A2 CAD Model

Description

The TDK Corporation DPX202690DT-4049A2 is a diplexer from TDK Corporation.

  • Packaging: Reel
  • Mounting Style: SMD
  • Frequency Band: 704MHz to 960MHz and 1.71GHz to 2.69GHz
  • Return Loss (Low Band): 17.9dB
  • Return Loss (High Band): 8.8dB
  • Manufacturer Package: 0805 (2012 Metric), 6 PC Pad
  • Supply/Demand: Sufficient
  • Manufacturer Pack Quantity: 2000
  • MSL Level: 1 (Unlimited)
