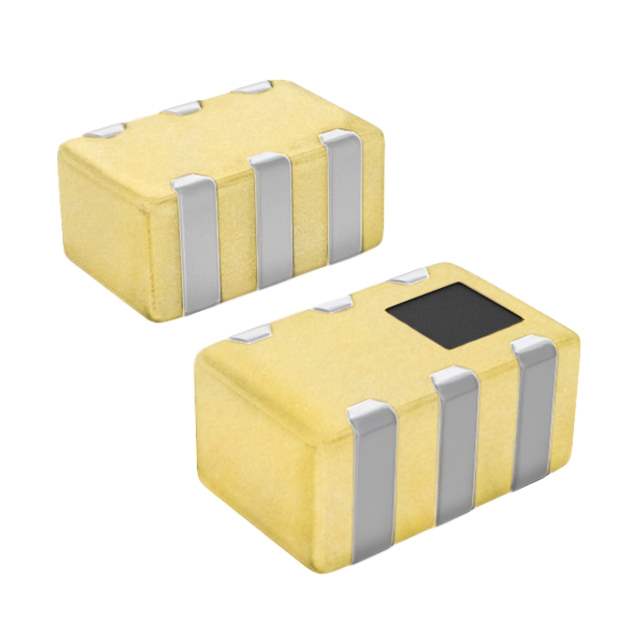

HHM1570B1 Real Image
Same model may have multiple batches, images only for reference.

HHM1570B1

Part No HHM1570B1
Manufacturer TDK Corporation
Catalog Balun
Description XFRMR BALUN RF 4.9GHZ WLAN SMD
Datasheet
HHM1570B1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Range 4.9GHz to 5.95GHz
Impedance - Unbalanced/Balanced 50 / 100 Ohm
Phase Difference 180° ±10
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Mounting Surface Mount
Win Source Part Number 001584-HHM1570B1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HHM1570B1 CAD Model

Description

The TDK Corporation HHM1570B1 is an RF/IF and RFID product with a frequency range of 4.9GHz to 5.95GHz. The product has an impedance of 50 / 100 Ohm and a phase difference of 180° ±10. The insertion loss (Max) is 1.0dB, and the return loss (Min) is 10dB. The product is mounted using surface mount technology and is active.
