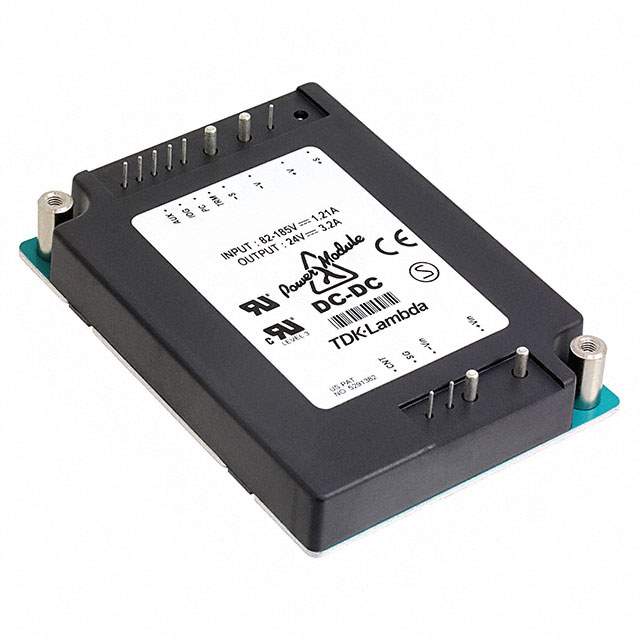

PH75F48-5 Real Image
Same model may have multiple batches, images only for reference.

PH75F48-5

Part No PH75F48-5
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERT DC-DC 5V 75W 15A
Datasheet
PH75F48-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer TDK-Lambda-Americas-Inc.
Series PH-F
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 5V
Current - Output (Max) 15A
Power (Watts) - Manufacture Series 75W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Mounting Style Through Hole
Package Module
Size / Dimension 3.39" L x 2.44" W x 0.50" H (86.0mm x 62.0mm x 12.7mm)
Operating Temperature Range -20°C ~ 85°C
Power (Watts) - Max 75W
Win Source Part Number 209891-PH75F48-5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PH75F48-5 CAD Model

Description

The PH75F48-5 from TDK-Lambda-Americas-Inc. is a high-quality and reliable DC DC converter.

  • Series: PH-F series
  • Type: isolated module
  • Supply and demand status: limited
  • Features: remote on/off, OCP, and OVP
  • Voltage isolation: 3kV
  • Maximum output current: 15A
  • Power: 75W
  • Temperature range: -20°C to 85°C
  • Applications: ITE (Commercial) depending on the requirements
