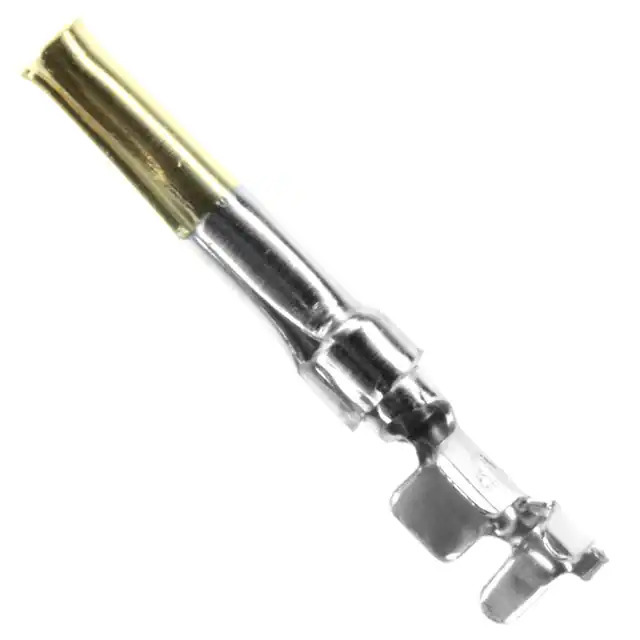

166051-1 TE Connectivity
Same model may have multiple batches, images only for reference.

166051-1

Part No 166051-1
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Contacts
Description CONN D-SUB SOCKET 20-24AWG CRIMP / D-Sub Contact Female Socket Gold 20-24 AWG Crimp Stamped
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Contacts
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Tape & Reel (TR)
Product Status Active
Type Signal
Contact Type Female Socket
Contact Form Stamped
Wire Gauge 20-24 AWG
Contact Termination Crimp
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Termination Finish Tin
Termination Finish Thickness -
Contact Size 20 DF
Features Insulation Support
Base Product Number 166051
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362847-166051-1
Ultra Librarian 3D Model Ultra Librarian 166051-1 CAD Model

Description

The 1362847-166051-1 is a D-sub connector contact from TE Connectivity AMP Connectors.

  • Series: AMPLIMITE HDP-20
  • Contact Type: Female Socket
  • Termination: Crimp
  • Wire Gauge: 20-24 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Status: Active
  • Packaging: Tape & Reel
  • Insulation: Yes
  • HTSUS: 8536.90.4000
  • ECCN: EAR99
  • Contact Material: Phosphor Bronze
  • Contact Form: Stamped
  • Termination Finish: Tin
  • MSL: 1 (Unlimited)
