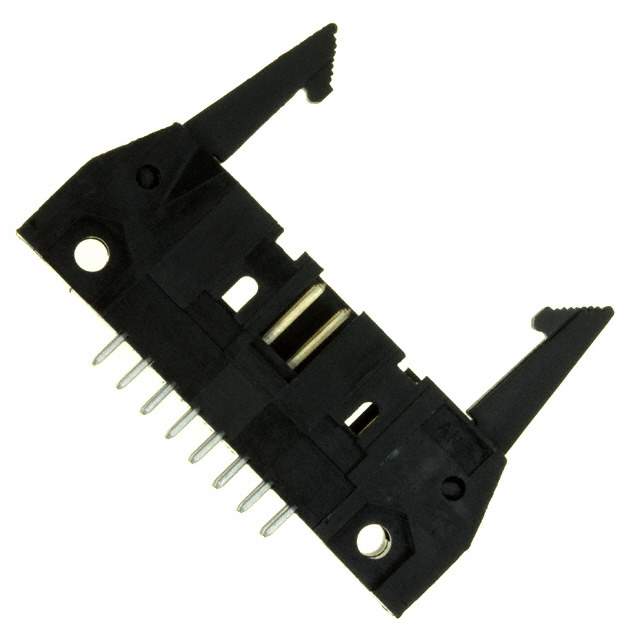

499206-3 Real Image
Same model may have multiple batches, images only for reference.

499206-3

Part No 499206-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.639" (16.23mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin-Lead
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 499206
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 499206-3-ND,AHK16A
Standard Package 504
Win Source Part Number 989316-499206-3
Ultra Librarian 3D Model Ultra Librarian 499206-3 CAD Model

Description

The TE Connectivity AMP-Latch 499206-3 is a male pin type rectangular connector with a header connector type.

  • Connector Type: Rectangular Connector
  • Header Type: Header
  • Positions: 16
  • Positions Loaded: All
  • Rows: 2
  • Contact Material: Not specified
  • Contact Finish Mating: Gold or Gold-Palladium
  • Contact Finish Mating Thickness: 30.0µin (0.76µm)
  • Contact Finish Post: Tin-Lead
  • Contact Finish Post Thickness: 100.0µin (2.54µm)
  • Voltage Rating: 250VAC
  • Current Rating: 1A
  • Shrouding: Shrouded-4 Wall
  • Pitch-Mating: 0.100" (2.54mm)
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Temperature Range: -65°C ~ 105°C
  • Application: Board to Cable/Wire
  • Mounting Type: Through-Hole
  • Feature: Shrouding with Mounting Flange
