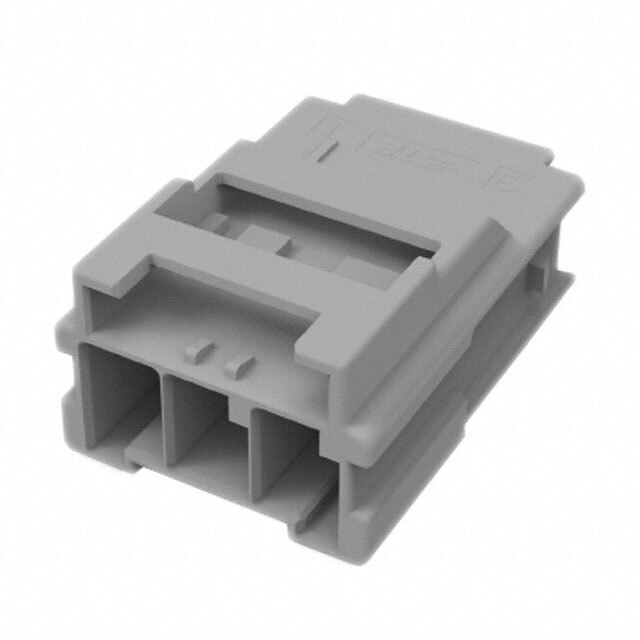

Same model may have multiple batches, images only for reference.
5-1747147-3 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5-1747147-3

Part No 5-1747147-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 3POS 0.4 GOLD PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Type Female Blade Socket
Style Board to Board
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.400" (10.16mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insulation Color Black
Insulation Height 0.551" (14.00mm)
Contact Length - Post 0.150" (3.81mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide, Board Lock
Current Rating (Amps) 30A
Voltage Rating 600V
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1626769-5-1747147-3
Ultra Librarian 3D Model Ultra Librarian 5-1747147-3 CAD Model
