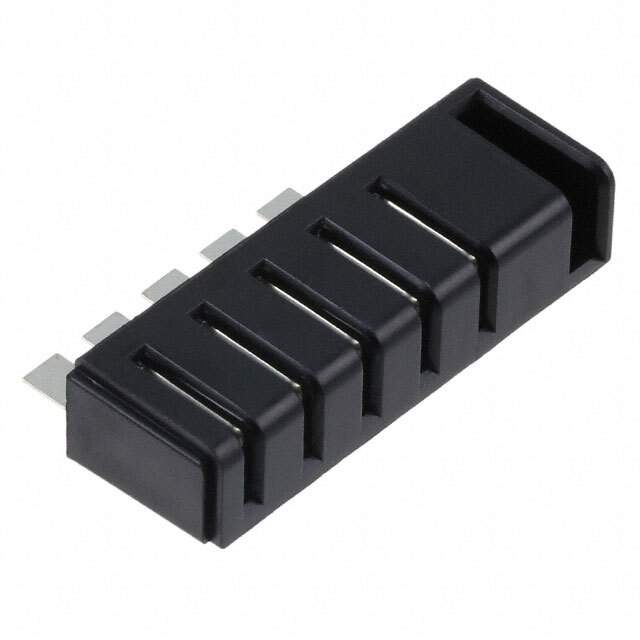

787614-1 Real Image
Same model may have multiple batches, images only for reference.

787614-1

Part No 787614-1
Manufacturer TE Connectivity
Catalog Blade Type Power Connectors
Description CONN RCPT 5POS 5.00MM SLDR / 5 Position Receptacle, Female Blade Sockets Connector Solder 0.197" (5.00mm) Board Edge, Cutout; Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Blade Type Power Connectors>Blade Type Power Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Style 10.8V Battery
Connector Type Receptacle, Female Blade Sockets
Number of Positions 5
Pitch 0.197" (5.00mm)
Mounting Board Edge, Cutout; Surface Mount
Number of Rows 1
Termination Solder
Features Right Hand Keying
Color Black
Fastening Type Push-Pull
Contact Material Phosphor Bronze
Contact Finish Nickel
Voltage Rating 10.8 V
Current Rating (Amps) 7 A
Material - Insulation Polycarbonate (PC)
Temperature Range - Operating -30°C ~ 70°C
Base Product Number 787614
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A123184,787614-1-ND
Standard Package 88
Win Source Part Number 1334228-787614-1
Ultra Librarian 3D Model Ultra Librarian 787614-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334228-787614-1 is a black-colored blade type power connector assembly with five positions and a pitch of 0.197" (5.00mm).

  • Color: black
  • Connector Type: blade, power
  • Position Number: 5
  • Pitch: 0.197" (5.00mm)
  • Keying: right-hand
  • Receptacle: Yes
  • Socket Type: female blade
  • Mounting Type: board edge, cutout, surface mount
  • Fastening Type: push-pull
  • Contact Finish: nickel
  • Contact Material: phosphor bronze
  • Voltage Rating: 10.8V
  • Current Rating: 7A
  • Operating Temperature: -30°C to 70°C
  • RoHS: compliant
