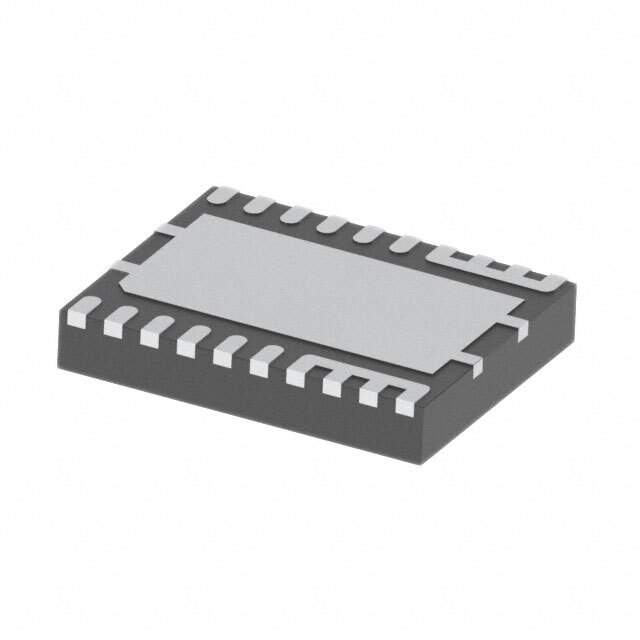

The CSD95492QVM represents the pinnacle of Texas Instruments' power management technology, encapsulating efficiency and reliability in a compact, integrated package. This power block is designed to meet the rigorous demands of high-performance computing and telecommunication applications, offering a state-of-the-art solution for power supply systems.

Key Features

• High Efficiency: The CSD95492QVM is optimized for 5V gate drive applications, delivering high efficiency over a wide load range, which is crucial for reducing thermal stress and improving system longevity.
• Advanced Packaging: Utilizing Texas Instruments' innovative SON 5x6mm package, the CSD95492QVM offers excellent thermal performance, thanks to its exposed top-side cooling and dual-sided cooling via a thermal pad.
• Optimized Footprint: The compact form factor of this power block is designed to minimize board space, allowing for more efficient use of PCB real estate without compromising on performance.
• Integrated Driver: Featuring an integrated driver, the CSD95492QVM simplifies design and reduces external component count, leading to a reduction in overall system complexity and cost.

Applications

The versatility of the CSD95492QVM power block makes it suitable for a wide range of applications, including but not limited to:

• Multi-phase power supplies
• Cloud computing
• High-performance computing
• Telecommunication equipment
• Server and enterprise solutions

Technical Specifications

With a continuous current capability of 40A, the CSD95492QVM is designed to deliver robust power delivery. Its operating junction temperature range from -40°C to 150°C ensures reliable performance across a wide spectrum of environmental conditions. The integrated power stages are optimized for 5V gate drive, providing designers with a flexible and efficient power solution.

For detailed technical specifications, application notes, and support documentation, please visit the Texas Instruments product page.
