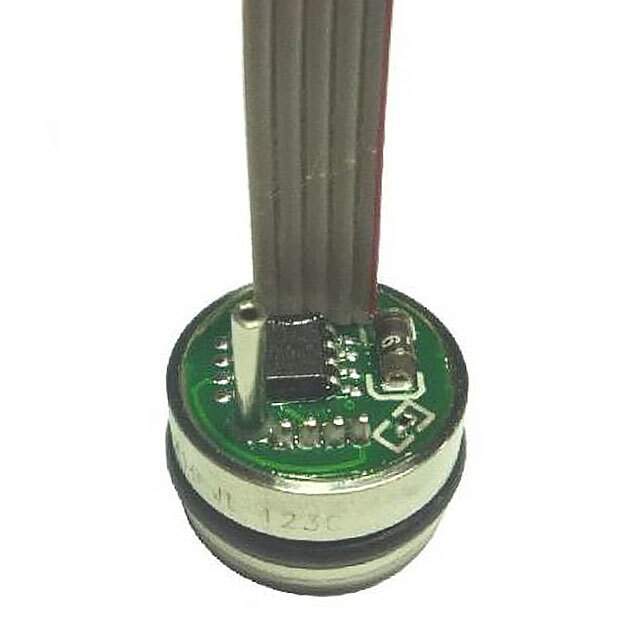

86BSD150PA-3AIC Real Image
Same model may have multiple batches, images only for reference.

86BSD150PA-3AIC

Part No 86BSD150PA-3AIC
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 150PSIA 14BIT / Pressure Sensor 150PSI (1034.21kPa) Absolute 14 b Module
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr TE Connectivity Measurement Specialties
Series 86BSD
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 150PSI (1034.21kPa)
Output Type I2C
Output 14 b
Accuracy ±0.25%
Voltage - Supply 3.3V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Cable with Connector
Maximum Pressure 300PSI (2068.43kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Module
Base Product Number 86BS
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1339888-86BSD150PA-3AIC
Ultra Librarian 3D Model Ultra Librarian 86BSD150PA-3AIC CAD Model

Description

The 86BSD150PA-3AIC is a pressure sensor designed for use in various electronic applications.

  • Operating Pressure: 150PSI
  • Maximum Pressure: 300PSI
  • Series: 86BSD
  • Package Type: Module
  • Mounting Type: Board Mount
  • Output Type: I2C
  • Accuracy: ±0.25%
  • Resolution: 14 bits
  • Temperature Range: -40°C to 125°C
  • Manufacturer: TE Connectivity Measurement Specialties
