Same model may have multiple batches, images only for reference.

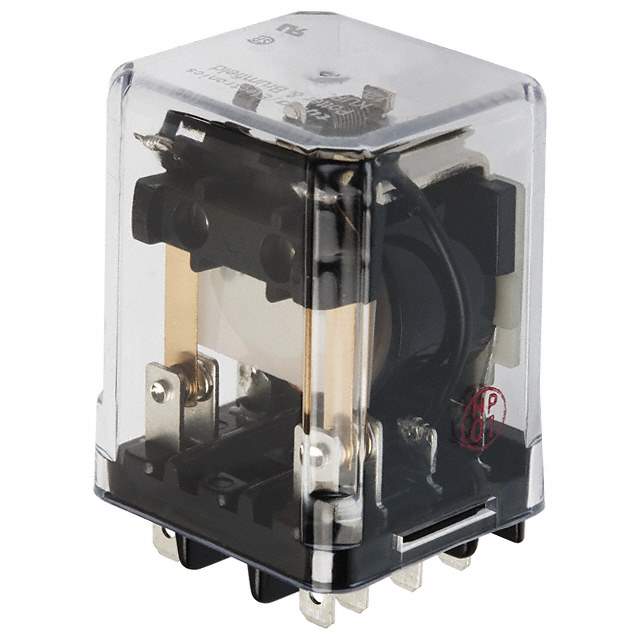

KUP-14D11-24 Real Image
Same model may have multiple batches, images only for reference.

KUP-14D11-24

Part No KUP-14D11-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PDT 5A 24V / General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KUP
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 5 A
Switching Voltage 240VAC - Max
Coil Current 51 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 18 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 472 Ohms
Base Product Number KUP-14
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0020
Other Names KUP14D1124,PB854,KUP-14D11-24-ND,1-1393118-0
Standard Package 25
Win Source Part Number 1166278-KUP-14D11-24
Ultra Librarian 3D Model Ultra Librarian KUP-14D11-24 CAD Model

Description

The KUP-14D11-24 is a power relay from TE Connectivity Potter & Brumfield Relays.

  • Contact Form: 3PDT (3 Form C)
  • Contact Rating (Current): 5 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 472 Ohms
  • Relay Type: General-Purpose
  • Coil Type: Non-Latching
  • Package: Bulk
  • Termination Style: Plug-In, Quick Connect - 0.187" (4.7mm)
  • Socketable: Yes
  • Operating Temperature Range: -45°C ~ 70°C
  • ECCN: EAR99
  • Mfr Part Number: KUP14D1124
  • Alternative Parts: 1-1393118-0 and KUP14D11-24
  • Base Product Number: KUP-14
  • RoHS Status: Non-Compliant
