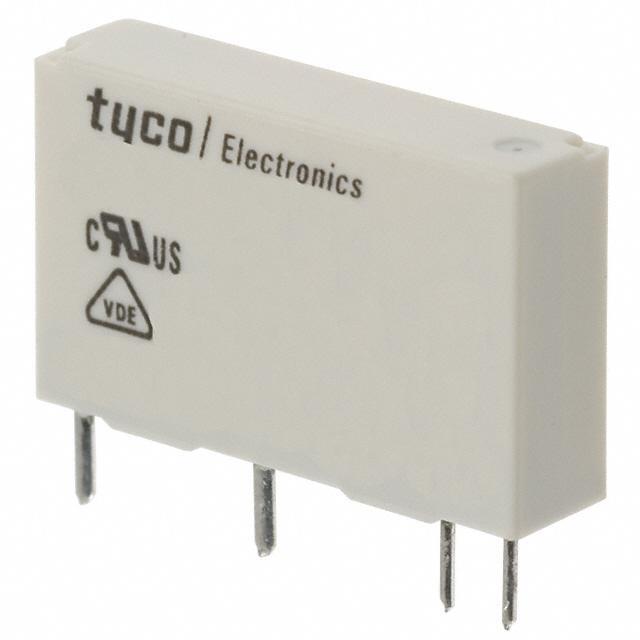

PCN-124D3MHZ,000 TE Connectivity
Same model may have multiple batches, images only for reference.

PCN-124D3MHZ,000

Part No PCN-124D3MHZ,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 24V / Power Relay 24VDC 3A SPST-NO(20mm 5mm 12.4mm) THT
Datasheet
PCN-124D3MHZ,000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series PCN, SCHRACK
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 5mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 277VAC, 125VDC - Max
Turn On Voltage (Maximum) 16.8 VDC
Turn Off Voltage (Minimum) 2.4 VDC
Operate Time 8ms
Release Time 3ms
Features Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Nickel (AgNi)
Coil Power 120 mW
Coil Resistance 4.8 kOhms
Operating Temperature Range -30°C ~ 70°C
Win Source Part Number 791600-PCN-124D3MHZ,000
Popularity Medium
Supply and Demand Status Balance
Family Name PCN
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PCN-124D3MHZ,000 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays PCN-124D3MHZ,000 is a sealed, general-purpose relay from TE Connectivity Potter & Brumfield Relays.

  • Contact Configuration: SPST-NO (1 Form A)
  • Contact Rating: 3A
  • Switching Voltage: 277VAC and 125VDC max
  • Coil Voltage: 24VDC
  • Coil Resistance: 4.8 kOhms
  • Mounting Type: Through Hole
  • Operating Temperature: -30°C to 70°C
  • Packaging: Tube
  • Estimated EOL Date: 2026
