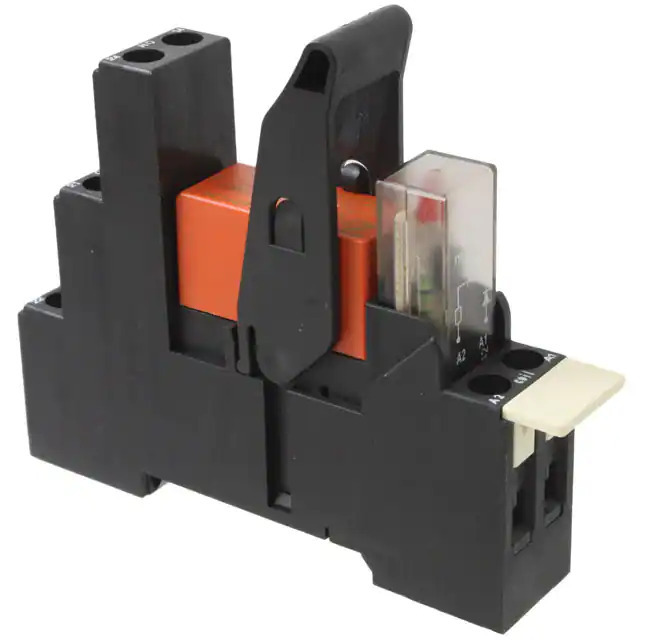

RT4S4R24 TE Connectivity
Same model may have multiple batches, images only for reference.

RT4S4R24

Part No RT4S4R24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RT, SCHRACK
Package Tube
Product Status Active
Mounting Type DIN Rail
Coil Voltage 24VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 31.6 mA
Coil Type Non Latching
Features Lighted Indicator, Socket Included
Termination Style Screw Terminal
Seal Rating -
Coil Insulation -
Must Operate Voltage 18 VAC
Must Release Voltage 3.6 VAC
Temperature Range - Operating -20°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 350 Ohms
Base Product Number RT4
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1379694-RT4S4R24
Ultra Librarian 3D Model Ultra Librarian RT4S4R24 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RT, SCHRACK series power relay is a reliable and high-performance component.

  • Operating Temperature: -20°C to 70°C
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 8A
  • Coil Voltage: 24VAC
  • Coil Current: 31.6mA
  • Mounting Type: DIN Rail
  • Termination Style: Screw Terminal
  • Lighted Indicator: Yes
  • Socket: Yes
