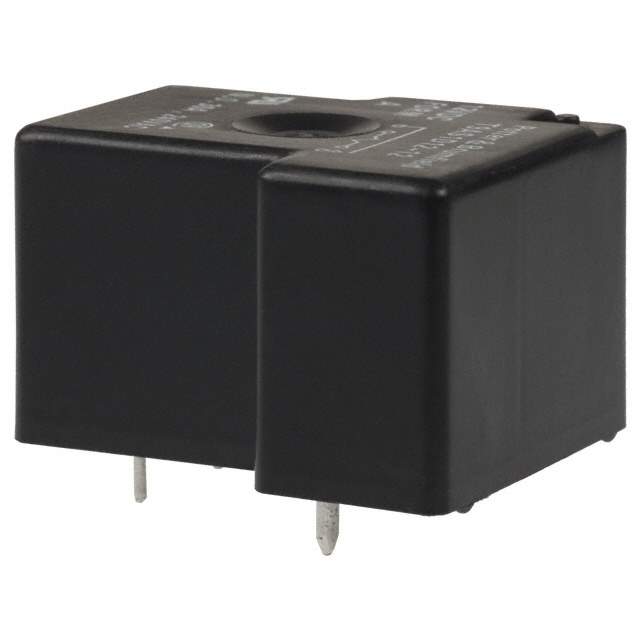

T9AS1D12-24 Real Image
Same model may have multiple batches, images only for reference.

T9AS1D12-24

Part No T9AS1D12-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 24V / Power Relay 24VDC 30A SPST-NO(32.51x27.43x20.4)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series T9A
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 41.7mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Max
Turn On Voltage (Maximum) 18 VDC
Turn Off Voltage (Minimum) 2.4 VDC
Operate Time 15ms
Release Time 15ms
Features Insulation - Class F, Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 1 W
Coil Resistance 576 Ohms
Operating Temperature Range -55°C ~ 85°C
Win Source Part Number 796209-T9AS1D12-24
Popularity Medium
Supply and Demand Status Limited
Family Name T9AS1D12-24
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Austria, China, Germany, Mexico, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian T9AS1D12-24 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays electronic component with Win Source Part Number 796209-T9AS1D12-24 is a general relay type.

  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 24VDC
  • Contact Rating: 30A
  • Sealed: Fully Sealed
  • Insulation: Class F
  • Popularity: Medium
  • Supply and Demand: Limited
