T9VV1K15-12S Real Image T9VV1K15-12S real image16515
Same model may have multiple batches, images only for reference.
T9VV1K15-12S Real Image T9VV1K15-12S real image16515
T9VV1K15-12S Real Image T9VV1K15-12S real image16515
Same model may have multiple batches, images only for reference.

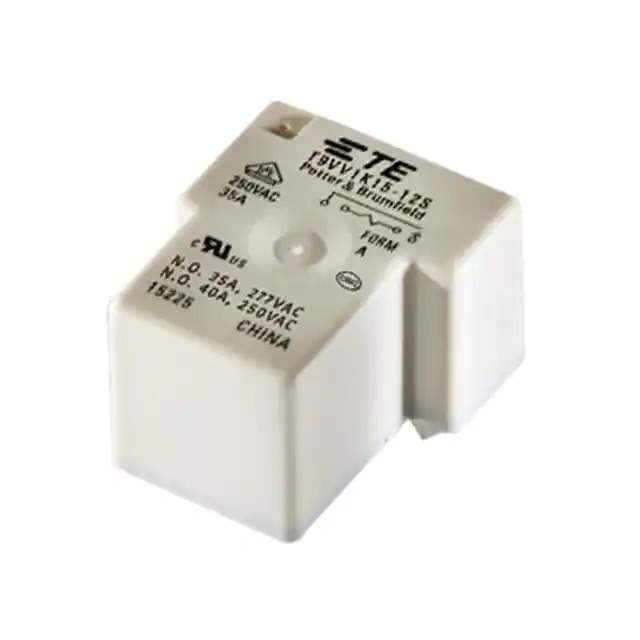

T9VV1K15-12S

Part No T9VV1K15-12S
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 40A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series T9V
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 40 A
Switching Voltage 277VAC - Nom
Coil Current 188 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 9.6 VDC
Must Release Voltage 0.8 VDC
Operate Time 18 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 64 Ohms
Base Product Number T9VV1
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 848278-T9VV1K15-12S
Ultra Librarian 3D Model Ultra Librarian T9VV1K15-12S CAD Model

Description

The 848278-T9VV1K15-12S is a power relay from TE Connectivity.

  • Series: T9V
  • Termination Style: PC Pin
  • Package: Tray
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Nickel (AgNi)
  • Coil Resistance: 64 Ohms
  • Coil Current: 188 mA
  • Operate Time: 18 ms
  • Release Time: 15 ms
  • Coil Voltage: 12VDC
  • Contact Rating: 40 A
  • Switching Voltage: Up to 277VAC
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • Coil Insulation: Not specified
  • Must Operate Voltage: 9.6 VDC
  • Must Release Voltage: 0.8 VDC
  • REACH Status: Undefined
  • HTSUS Code: 8536.41.0050
  • Product Status: Active
