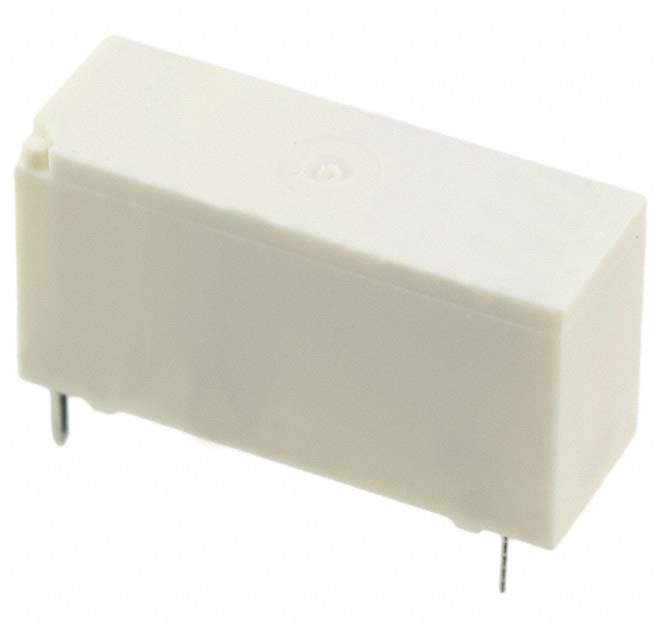

V23061B1007A601 Real Image1 V23061B1007A601 Real Image2
Same model may have multiple batches, images only for reference.
V23061B1007A601 Real Image1 V23061B1007A601 Real Image2
V23061B1007A601 Real Image1 V23061B1007A601 Real Image2
Same model may have multiple batches, images only for reference.

V23061B1007A601

Part No V23061B1007A601
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity
Series MSR, SCHRACK
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 10.6 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class A
Must Operate Voltage 16.3 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO), Gold (Au)
Relay Type General Purpose
Coil Resistance 2.27 kOhms
Base Product Number V23061
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Standard Package 20 pcs
Win Source Part Number 1383818-V23061B1007A601
Ultra Librarian 3D Model Ultra Librarian V23061B1007A601 CAD Model

Description

The V23061B1007A601 is a power relay with a SPDT (1 Form C) contact form. It is part of the MSR and SCHRACK series of relays and has a coil voltage of 24VDC.

  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 24VDC
  • Contact Rating: 8 A
  • Switching Voltage: 400VAC
  • Coil Current: 10.6 mA
  • Operate Time: 10 ms
  • Sealed: Fully Sealed
  • Termination Style: PC Pin
  • Application: General Purpose
  • Package: Tube
  • Temperature Range: -40°C to 85°C
  • Manufacturer: TE Connectivity
