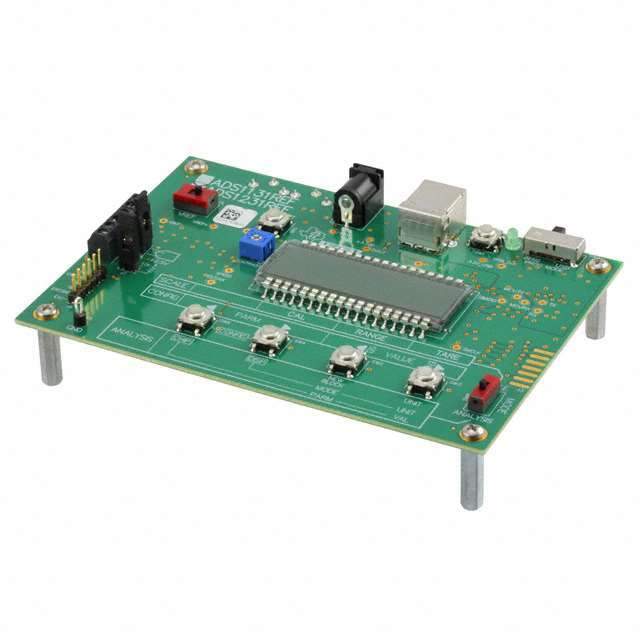

The ADS1231REF is a high-precision, 24-bit analog-to-digital converter (ADC) reference design module, specifically designed by Texas Instruments for weight scale and industrial control applications. This module is renowned for its exceptional performance in terms of accuracy, low noise, and ease of use, making it an ideal choice for professionals seeking reliable data acquisition in critical measurements.

Key Features

• High Precision: With a 24-bit resolution, the ADS1231REF offers high-precision data conversion, ensuring that even the smallest changes in the input signal are accurately captured.
• Low Noise: The module includes a low-noise programmable gain amplifier, which provides excellent performance for signal amplification while minimizing the noise, thus preserving the signal integrity.
• Simple Interface: Designed with simplicity in mind, the ADS1231REF has a minimal pin count and straightforward SPI-compatible serial interface, which simplifies the design and reduces the time to market.
• Onboard Oscillator: It features an onboard oscillator that eliminates the need for external clocking devices, further simplifying the system design.
• Power Efficiency: The device operates on a single power supply with a wide range, making it suitable for battery-powered and portable applications.

Applications

The ADS1231REF is versatile and can be used in a variety of applications, including:

• High-resolution weight scales
• Industrial process control
• Force and pressure sensing
• Medical instrumentation

Technical Specifications

For engineers and designers looking for a robust and precise data acquisition solution, the ADS1231REF from Texas Instruments stands out as a top choice. Its combination of high precision, low noise, and ease of integration offers an excellent platform for developing accurate and reliable measurement systems.
