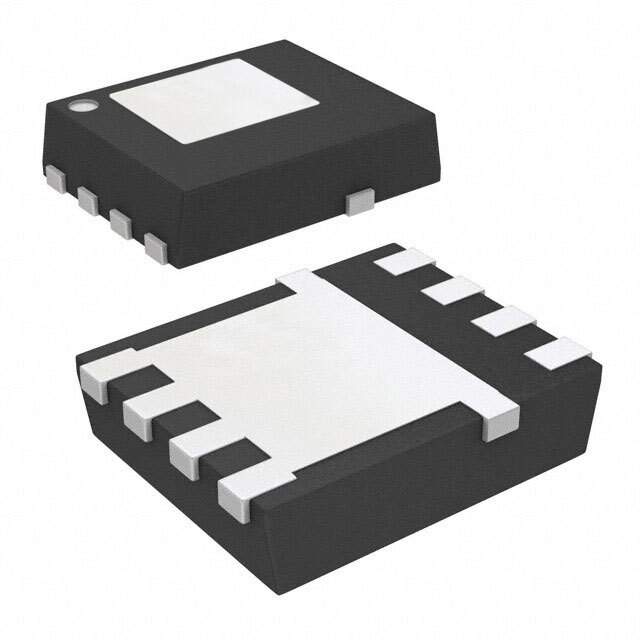

CSD16321Q5C Real Image
Same model may have multiple batches, images only for reference.

CSD16321Q5C

Part No CSD16321Q5C
Manufacturer Texas Instruments
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 100A 8SON
Datasheet
CSD16321Q5C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 31A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 3V, 8V
Gate-Source Threshold Voltage 1.4V @ 250μA
Max Gate Charge 19nC @ 4.5V
Max Input Capacitance 3100pF @ 12.5V
Maximum Gate-Source Voltage +10V, -8V
Power Dissipation (Max) 3.1W (Ta)
Maximum Rds On at Id,Vgs 2.4 mOhm @ 25A, 8V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-VSON-CLIP (5x6)
Dimension 8-PowerTDFN
Win Source Part Number 013346-CSD16321Q5C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CSD16321Q5C CAD Model

Description

Overview

The CSD16321Q5C is a high-performance N-channel MOSFET designed for efficiency and reliability in various electronic applications. Its compact 5x6mm package makes it suitable for space-constrained projects.

Features and Benefits

  • Low On-Resistance: Provides high efficiency in power conversion applications.
  • Fast Switching: Ensures reduced power losses and enhanced performance.
  • Thermal Optimized Package: Offers improved heat dissipation and reliability.

Applications

  • DC-DC Converters
  • Point of Load (PoL) Modules
  • Motor Drives

Additional Details

The CSD16321Q5C is manufactured with advanced packaging technology, ensuring low thermal resistance and a high degree of reliability in demanding environments.
