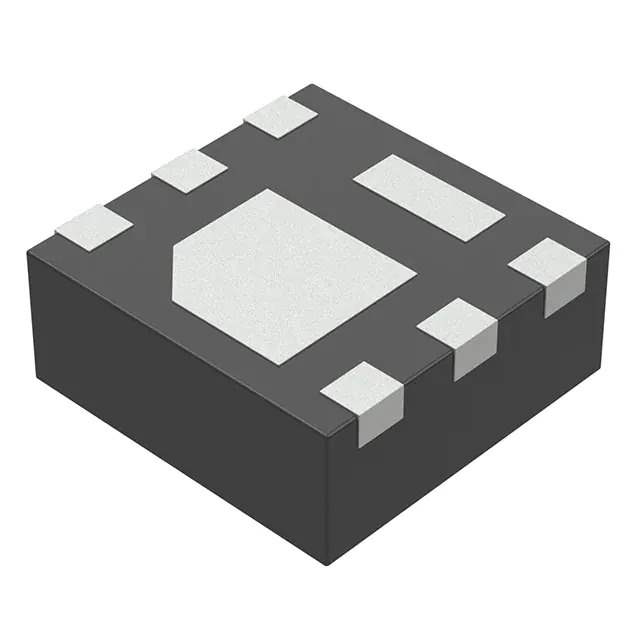

Overview of Texas Instruments CSD17318Q2 MOSFET

The Texas Instruments CSD17318Q2 is a highly efficient, N-Channel NexFET™ power MOSFET designed to deliver optimal performance in a wide range of applications. This state-of-the-art power MOSFET is a testament to Texas Instruments' commitment to providing innovative solutions that meet the demanding requirements of modern electronic systems.

Key Features

• Low On-Resistance: The CSD17318Q2 features ultra-low on-resistance (R<sub>DS(on)), which significantly reduces conduction losses and improves overall efficiency, making it ideal for high-performance power management systems.
• High Continuous Drain Current: With a high continuous drain current (I<sub>D) capability, this MOSFET can handle substantial current loads without compromising performance, ensuring reliability even under strenuous conditions.
• Fast Switching Speed: The fast switching characteristics of the CSD17318Q2 minimize switching losses and enable high-frequency operation, which is crucial for applications such as DC-DC converters and motor control circuits.
• Low Thermal Resistance: The device boasts a low thermal resistance that facilitates efficient heat dissipation, thus maintaining thermal stability and prolonging the lifespan of the MOSFET under high-power operation.
• Advanced Packaging: Enclosed in a compact SON 5mm x 6mm package, the CSD17318Q2 offers a space-saving solution without sacrificing performance, making it suitable for space-constrained applications.

Applications

The versatility of the CSD17318Q2 allows it to be used in a broad range of applications, including but not limited to:

• Power supply systems
• DC-DC converters
• Motor drives
• Load switches
• Battery management systems
• Point of Load (POL) modules

Conclusion

With its robust performance and compact form factor, the Texas Instruments CSD17318Q2 is an excellent choice for designers seeking a reliable and efficient power MOSFET. Its superior electrical characteristics and thermal performance ensure that it can meet the challenges of the most demanding power applications. Whether it's for industrial, automotive, or consumer electronics, the CSD17318Q2 is poised to deliver the efficiency and durability required for today's high-performance electronic devices.
