Introducing the CSD22205LT from Texas Instruments

The CSD22205LT is a state-of-the-art power MOSFET brought to you by Texas Instruments, a leader in semiconductor design and manufacturing. This MOSFET is part of TI's NexFET™ product line, which is renowned for its high performance and efficiency in power management applications. The CSD22205LT is specifically designed to meet the demanding requirements of today's high-density power systems.

Key Features

• Low On-Resistance: The CSD22205LT boasts an ultra-low on-resistance (R<sub>DS(on)), which translates to reduced conduction losses and improved overall efficiency in power conversion applications.
• Low Q<sub>g and Q<sub>gd: With its low gate charge and gate-drain charge, the CSD22205LT ensures minimal switching losses, making it ideal for high-frequency power switching.

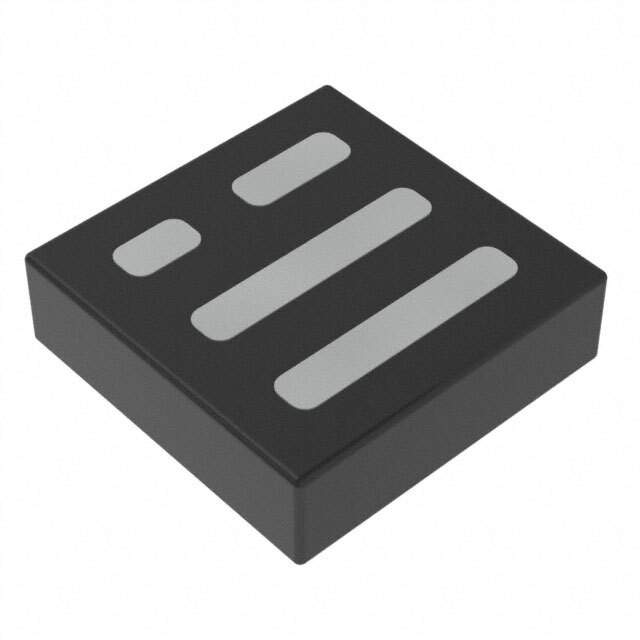

• Advanced Packaging: Enclosed in a compact SON 2x2 package, the CSD22205LT minimizes the footprint on PCBs and is suitable for space-constrained applications.
• High Continuous Drain Current: This device supports a high continuous drain current (I<sub>D), providing robust power handling capability for a wide range of applications.

Applications

The versatility of the CSD22205LT allows it to be used in various applications, including:

• DC/DC Converters
• Motor Drives
• Power Supply Modules
• Point of Load (POL) Modules
• Switch Mode Power Supplies (SMPS)

Reliability and Performance

With Texas Instruments' commitment to quality, the CSD22205LT is manufactured to deliver high reliability and performance under diverse operating conditions. It is designed to withstand high temperatures and is characterized for operation from -55°C to 150°C. This ensures that the device can be implemented in industrial and automotive applications where extremes of temperature are common.

Environmental Compliance

Adhering to environmental regulations, the CSD22205LT is RoHS compliant, ensuring that it meets the latest standards for hazardous substance restrictions. This makes the CSD22205LT not only a high-performing component but also an environmentally responsible choice for your power management solutions.

Whether you are designing power supplies, motor controls, or any other application that requires efficient power handling, the CSD22205LT from Texas Instruments is an excellent choice that combines performance, efficiency, and compactness.
