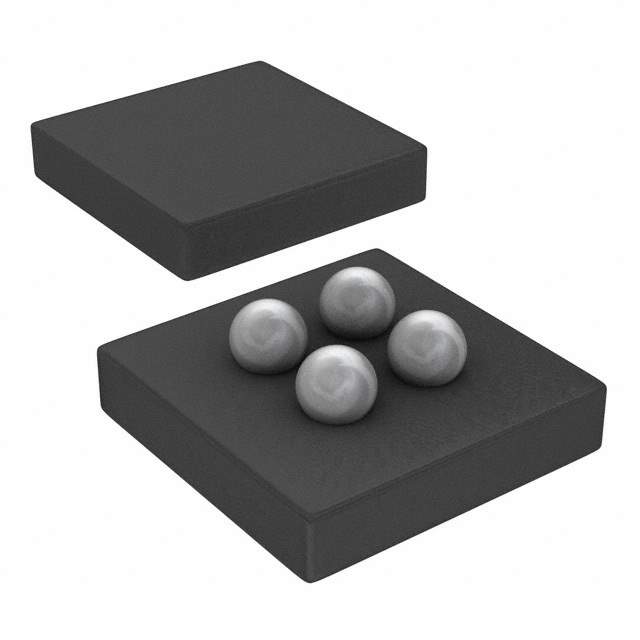

CSD23201W10 Real Image
Same model may have multiple batches, images only for reference.

CSD23201W10

Part No CSD23201W10
Manufacturer Texas Instruments
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 12V 2.2A 4DSBGA
Datasheet
CSD23201W10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 2.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 2.4nC @ 4.5V
Max Input Capacitance 325pF @ 6V
Maximum Gate-Source Voltage -6V
Power Dissipation (Max) 1W (Ta)
Maximum Rds On at Id,Vgs 82 mOhm @ 500mA, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-DSBGA (1x1)
Dimension 4-UFBGA, DSBGA
Win Source Part Number 100363-CSD23201W10
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Safety, Industrial
Ultra Librarian 3D Model Ultra Librarian CSD23201W10 CAD Model

Description

CSD23201W10 Description

The CSD23201W10 is a high-efficiency electronic component suited for lightweight and space-saving applications. Its outstanding design ensures minimal thermal resistance and excellent conductivity.

Features and Benefits

  • Optimized for low-voltage applications
  • High current capacity
  • Extremely low on-state resistance
  • Compact and lightweight

Applications

  • Wearable electronic devices
  • Portable media players
  • Smart home devices
  • Telecommunication equipment

Engineered for today's cutting-edge technology, the CSD23201W10 is a smart choice for cost-effective energy usage.
