The CSD87334Q3DT from Texas Instruments is an exceptional, highly-efficient NexFET™ power block that is setting new standards in the field of integrated power management. Designed for a variety of applications, this state-of-the-art product offers a compact, high-performance solution for your power needs.

Key Features:

• Advanced Technology: The CSD87334Q3DT utilizes Texas Instruments' cutting-edge NexFET technology to provide high efficiency and reduce power loss, making it ideal for high-density power applications.

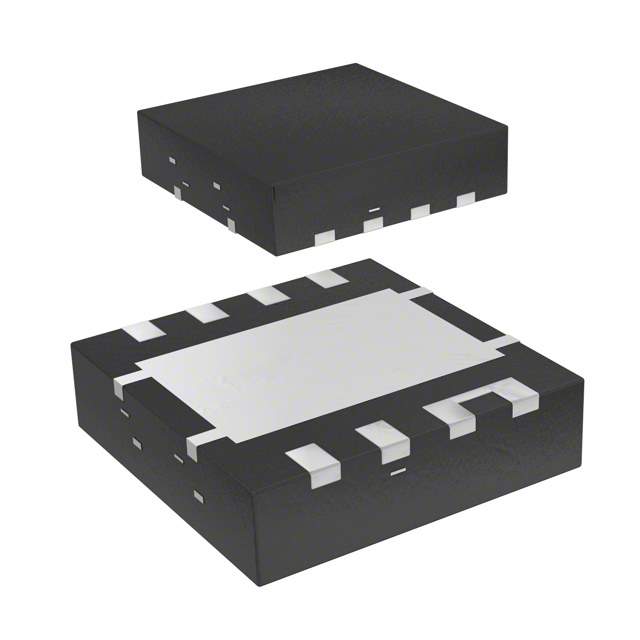

• Dual MOSFET Design: This power block combines two MOSFETs in a single SON 3.3mm x 3.3mm package, delivering a reduction in board space without compromising on performance.
• Optimized Performance: With an integrated high-side and low-side MOSFET, the device ensures optimal power efficiency, which is crucial for maintaining the performance and longevity of electronic systems.

Applications:

The versatility of the CSD87334Q3DT makes it suitable for a wide range of applications, including:

• DC/DC power supplies
• Motor drives
• Computing and server applications
• Power tool systems
• Telecommunication equipment

Technical Specifications:

The CSD87334Q3DT boasts impressive technical specifications that ensure reliable and efficient operation:

• Voltage Rating: 30V
• Continuous Drain Current: 40A
• R_DS(on): 8mΩ at V_GS = 10V (High-Side and Low-Side)
• Power Stage Efficiency: Over 90%
• Operating Temperature Range: -40°C to 150°C

With the CSD87334Q3DT, Texas Instruments continues to demonstrate its commitment to innovation and excellence in power management solutions. Whether for industrial, consumer, or computing applications, this power block is engineered to meet the most demanding requirements, providing both performance and reliability.
