Product Overview: CSD88584Q5DC NexFET™ Power Block from Texas Instruments

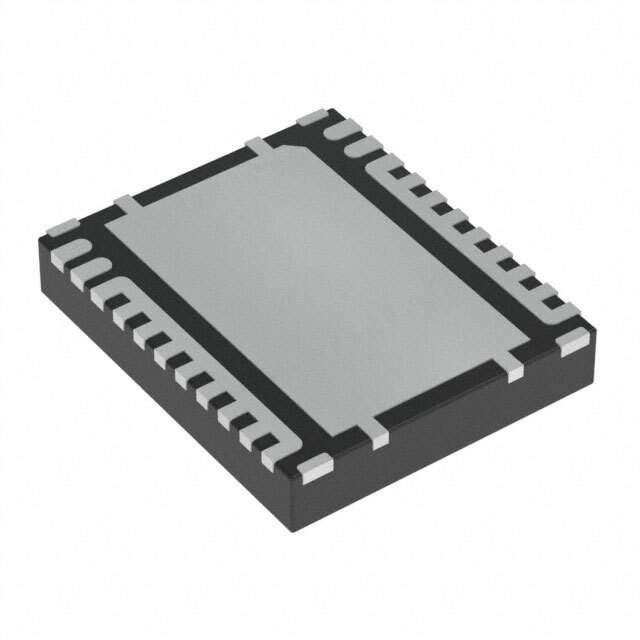

The CSD88584Q5DC is a high-performance, synchronous buck power stage that combines the driver and two power MOSFETs in a compact QFN package. Manufactured by Texas Instruments, this power block is part of their NexFET™ product line, renowned for its efficiency and thermal performance. The device is designed to deliver optimal power management solutions for a variety of applications, including computing, consumer electronics, and networking equipment.

Key Features

• High-Density Power Solution: The CSD88584Q5DC integrates two power MOSFETs and a driver IC into a single package, reducing the footprint on the PCB and simplifying the design process.
• Efficiency: With its advanced NexFET™ technology, the device achieves high efficiency, which is crucial for systems requiring low power loss and heat generation.
• Performance: The power block is capable of operating at high frequencies, which allows for smaller external components, further reducing space and cost.
• Thermal Management: The package design enhances thermal performance, ensuring reliability and longevity even under high power operation.
• Flexible Application: It is suitable for use in multiphase power supplies, providing the flexibility to meet various design requirements.

Applications

• Computing systems
• Networking and telecommunications equipment
• Gaming consoles
• Graphics cards
• Point-of-load conversions

Technical Specifications

The CSD88584Q5DC operates over a wide input voltage range and provides a continuous current capability. It features an optimal gate drive designed for the included high- and low-side MOSFETs, ensuring efficient switching performance. The device also includes protection features such as overcurrent protection, thermal shutdown, and under-voltage lockout, which contribute to the overall system robustness.

For designers looking to enhance power density while maintaining high efficiency, the CSD88584Q5DC NexFET™ Power Block from Texas Instruments represents a cutting-edge solution that meets the stringent demands of modern electronic devices. Its compact size, combined with exceptional performance and thermal characteristics, make it an ideal choice for next-generation power systems.
