Product Overview: CY74FCT162827BTPVC from Texas Instruments

The CY74FCT162827BTPVC is a high-performance integrated circuit manufactured by Texas Instruments, renowned for its precision and reliability in the electronics industry. This particular component is part of the FCT series, which is designed to meet the demanding requirements of high-speed data transmission and signal processing applications.

Key Features

• Technology: The device is built using BiCMOS technology, which combines the speed of bipolar transistors with the low power consumption of CMOS technology, providing an optimal balance for high-speed operation and energy efficiency.
• Logic Type: It is a 20-bit buffer/line driver with 3-state outputs, which makes it suitable for driving bus lines or buffering memory address registers.
• Operating Voltage: It operates at a nominal voltage of 5V, which is compatible with TTL (Transistor-Transistor Logic) levels, ensuring easy integration into a wide range of digital systems.
• Drive Capability: The device offers a high drive capability with balanced propagation delays and output transition times, which is critical for maintaining signal integrity in fast data buses.

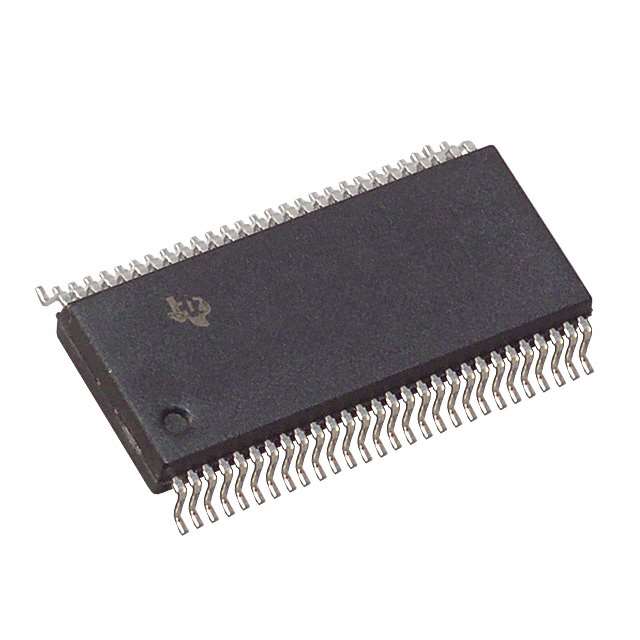

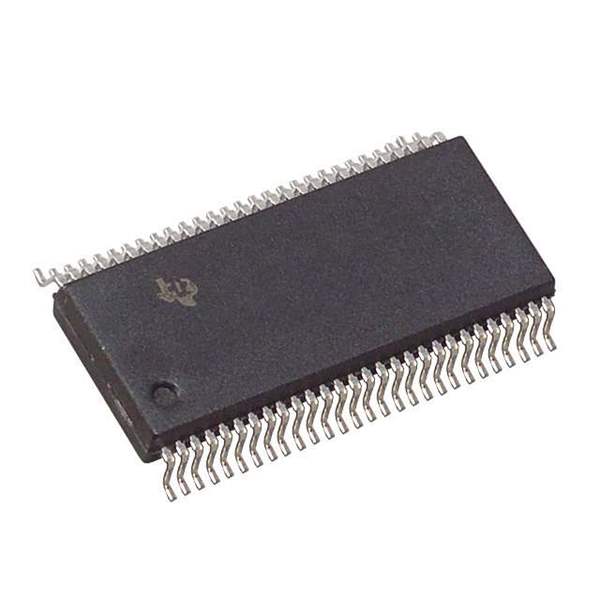

• Package: Housed in a 56-pin SSOP (Shrink Small Outline Package), the CY74FCT162827BTPVC is designed for space-saving on PCBs (Printed Circuit Boards) without compromising performance.

Applications

The CY74FCT162827BTPVC is ideal for various applications that require high-speed data flow and signal conditioning, including:

• Data communication systems
• Networking equipment
• High-speed memory interfacing
• Signal buffering in servers and workstations
• Industrial control systems

Quality and Reliability

Texas Instruments is committed to delivering high-quality products, and the CY74FCT162827BTPVC is no exception. It undergoes rigorous testing and quality control measures to ensure it meets the stringent standards for industrial and commercial use. Customers can trust this component for its durability and consistent performance in their electronic designs.

In summary, the CY74FCT162827BTPVC from Texas Instruments is a versatile, high-speed buffer/line driver that offers designers a combination of performance, power efficiency, and reliability, making it a valuable component for a broad range of digital applications.
