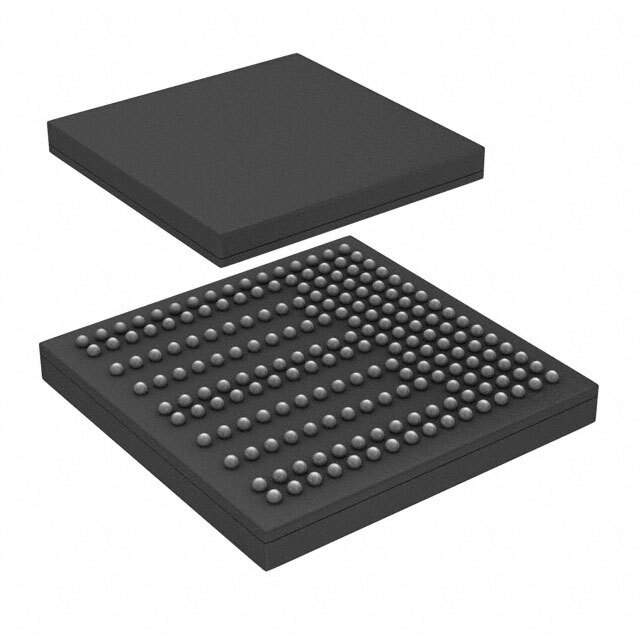

The DDC1128ZKLR is a state-of-the-art analog-to-digital converter (ADC) manufactured by Texas Instruments, a leader in semiconductor design and production. This precision ADC is specifically designed for direct current (DC) and low-frequency alternating current (AC) measurement systems, making it an ideal choice for applications such as medical imaging, scientific instrumentation, and industrial automation.

Key Features

• High-Resolution: The DDC1128ZKLR boasts a remarkable 20-bit resolution, providing high precision and accuracy in data conversion.
• Integrated Features: It includes 128 channels of charge-balancing ADCs, which significantly simplifies the design of systems requiring multiple input channels.
• Low Power Consumption: Designed for efficiency, it operates with a low power consumption, making it suitable for battery-powered or energy-sensitive applications.
• Digital Interface: The device comes with a serial interface for configuration and read-out, which facilitates easy integration into digital systems.

Performance Specifications

• Input Signal Range: ±5 pC to ±320 pC
• Data Output Rate: Up to 2 kSPS (samples per second) per channel
• Supply Voltage Range: 2.7 V to 5.25 V
• Operating Temperature Range: -40°C to +85°C

Applications

The DDC1128ZKLR is versatile and can be employed in a wide array of applications. Its high channel count and precision make it particularly well-suited for:

• Medical Imaging Systems like CT scanners and PET scanners
• Scientific Research Equipment, including spectrometers and particle detectors
• Industrial Process Control, such as multi-sensor monitoring systems
• Energy Management, including power quality analysis and smart grid infrastructure

With its robust design and advanced technology, the DDC1128ZKLR from Texas Instruments represents a significant advancement in ADC technology, offering designers and engineers a reliable, high-performance solution for their data acquisition needs.
