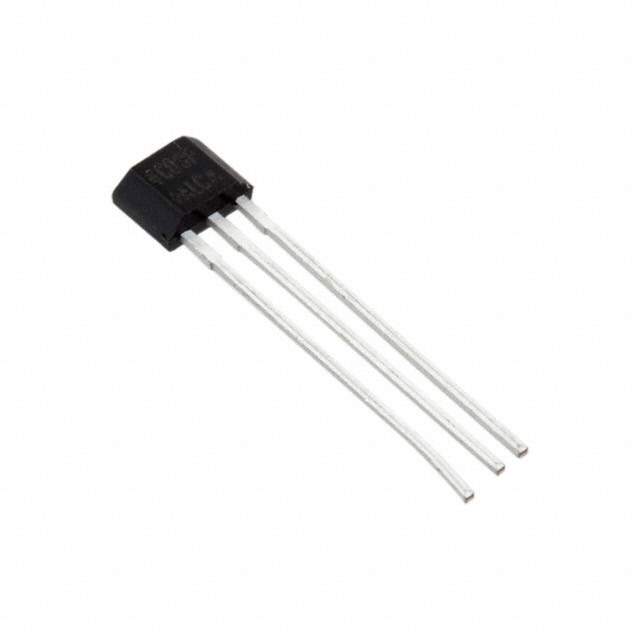

DRV5013ADQLPGM Digital Latch Hall Effect Sensor

The DRV5013ADQLPGM is a state-of-the-art digital latch Hall effect sensor designed and manufactured by Texas Instruments. This device offers a magnetic sensing solution with superior reliability, high accuracy, and impressive durability for a wide range of industrial and consumer applications. The DRV5013 series is particularly suited for position sensing in systems where contactless detection is preferred for maintenance-free operation.

Key Features

• Magnetic Sensing: The sensor provides a digital latch output that changes state in the presence of a south or north magnetic pole, making it highly versatile for various magnetic field detection scenarios.
• Supply Voltage Range: It operates over a broad supply voltage range from 2.7V to 38V, accommodating a diverse range of applications and system voltages.
• Temperature Range: The sensor is designed to perform consistently across a wide temperature range of -40°C to 125°C, ensuring reliability in harsh environmental conditions.
• Power Consumption: With a low average supply current, the DRV5013ADQLPGM is an energy-efficient solution for battery-powered and energy-sensitive applications.
• Package: Housed in a compact 3-pin SOT-23 package, the device is suitable for space-constrained applications while providing robustness and ease of integration.
• Output: The open-drain output supports simple interfacing with microcontrollers and other digital systems, allowing for flexible design integration.
• Protection Features: The device includes reverse supply protection up to -22V and output short-circuit protection, enhancing the sensor's resilience in complex electrical environments.

Applications

The DRV5013ADQLPGM is ideal for a variety of applications, including but not limited to:

• Position and speed sensing in motor control systems
• End-of-travel or home position detection in industrial equipment
• Open/close detection in consumer electronics such as laptops and smart home devices
• Flow metering in utility meters and industrial instruments

With its robust design, the DRV5013ADQLPGM sensor from Texas Instruments is a reliable choice for designers looking to improve system performance while reducing maintenance costs and ensuring long-term stability in their sensing applications.
