Same model may have multiple batches, images only for reference.

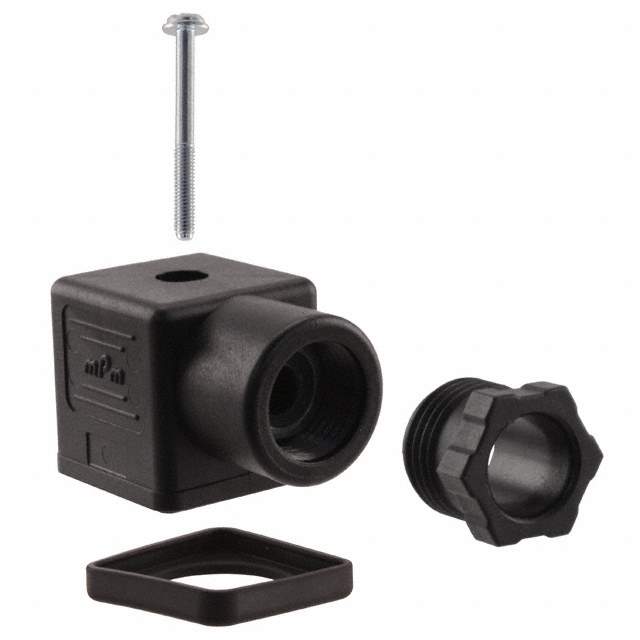

1210230341 Real Image
Same model may have multiple batches, images only for reference.

1210230341

Part No 1210230341
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description mPm® DIN Valve Connector, Type A, 3 Pole Plus Ground PG9, Black Nitrile Profile Gasket
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Brass
Contact Plating Silver
Country of Origin PL
Current Rating 16 A
Gender Receptacle
Housing Material Polyamide
Length 29.5 mm
Max Operating Temperature 90 °C
Min Operating Temperature -40 °C
Number of Pins 4
Number of Positions 3
Orientation Right Angle
REACH SVHC Unknown
RoHS Compliant
Voltage Rating (AC) 250 V
Voltage Rating (DC) 300 V
Win Source Part Number 1158544-1210230341
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1210230341 CAD Model

Description

The 1158544-1210230341 is an electronic component manufactured by Molex, LLC.

  • Type: Receptacle
  • Positions: 3
  • Pins: 4
  • Contact Material: Brass
  • Current Rating: 16 A
  • Housing Material: Polyamide
  • Contact Plating: Silver
  • Orientation: Right Angle
  • Length: 29.5 mm
  • Color: Black
  • RoHS Compliant: Yes
  • Voltage Rating (AC): 250 V
  • Voltage Rating (DC): 300 V
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 90 °C
