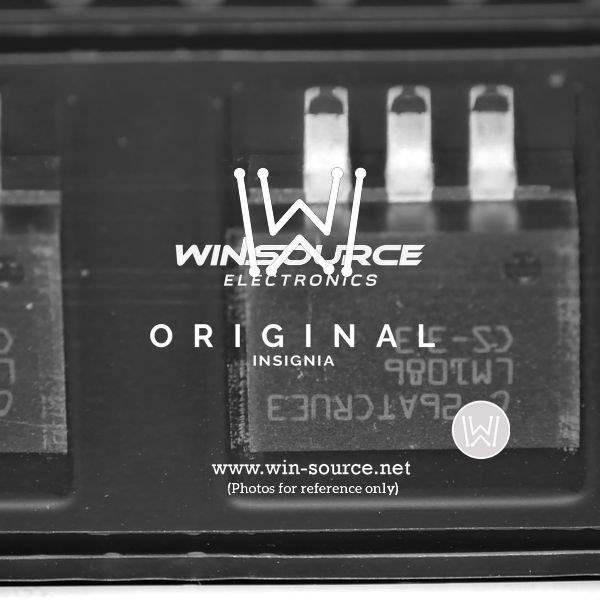

LM1086CSX-3.3 Texas Instruments LM1086CSX-3.3 real image937 LM1086CSX-3.3 Real Image LM1086CSX-3.3 label picture
Same model may have multiple batches, images only for reference.

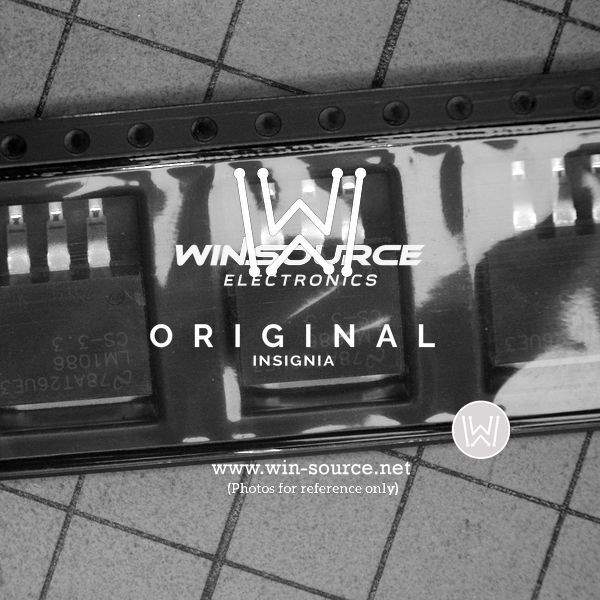

LM1086CSX-3.3 Texas Instruments LM1086CSX-3.3 real image937 LM1086CSX-3.3 Real Image LM1086CSX-3.3 label picture

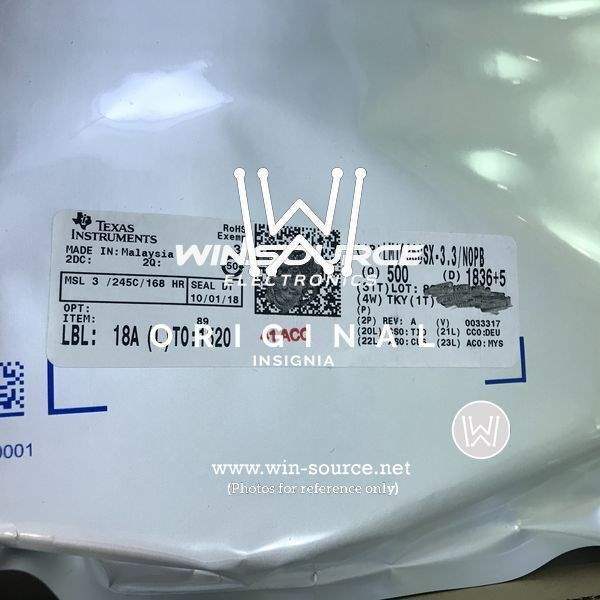

LM1086CSX-3.3 Texas Instruments LM1086CSX-3.3 real image937 LM1086CSX-3.3 Real Image LM1086CSX-3.3 label picture
Same model may have multiple batches, images only for reference.

LM1086CSX-3.3

Part No LM1086CSX-3.3
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 1.5A DDPAK
Datasheet
LM1086CSX-3.3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 27V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 1.5V @ 1.5A
Output Current 1.5A
Operating Supply Current 5mA to 10mA
PSRR 72dB (120Hz)
Control Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 1.3V @ 1.5A
Mounting SMD (SMT)
Case / Package DDPAK/TO-263-3
Win Source Part Number 090586-LM1086CSX-3.3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management
Family Name LM1086
Introduction Date August 01, 1999
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian LM1086CSX-3.3 CAD Model

Description

The LM1086CSX-3.3 is a highly efficient and superior quality voltage regulator developed by Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Output Voltage: 3.3 volts
  • Output Current: Up to 1.5A
  • Type: Low-Dropout (LDO) Regulator
  • Line and Load Regulation: Excellent
  • Package: TO-263
  • Protection Features: Current Limit and Thermal Shutdown
