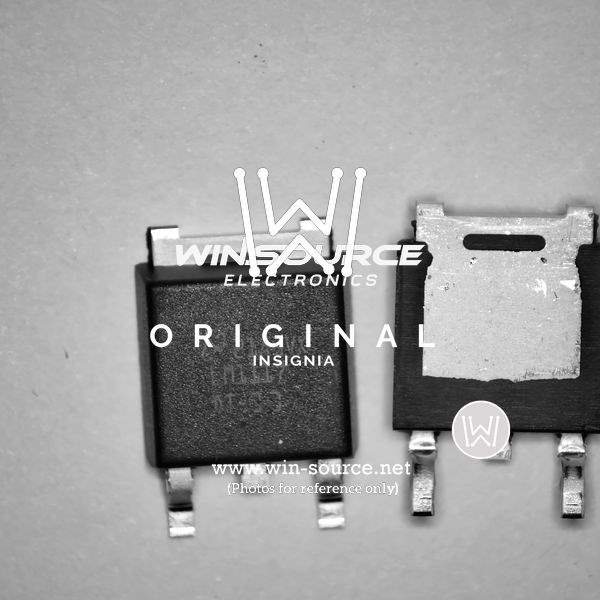

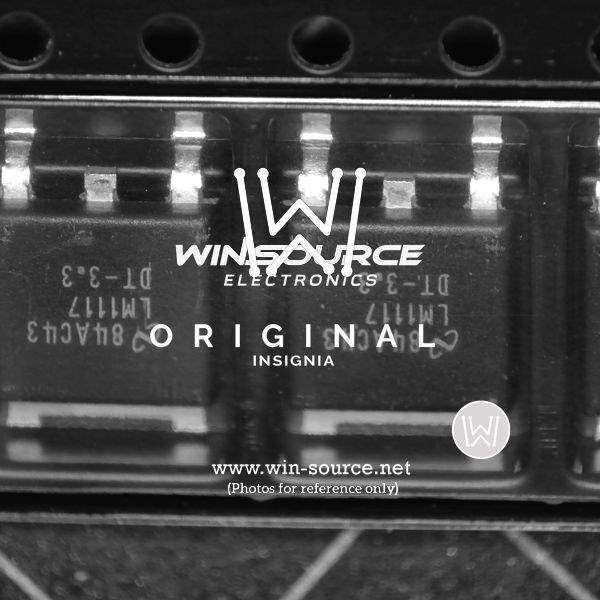

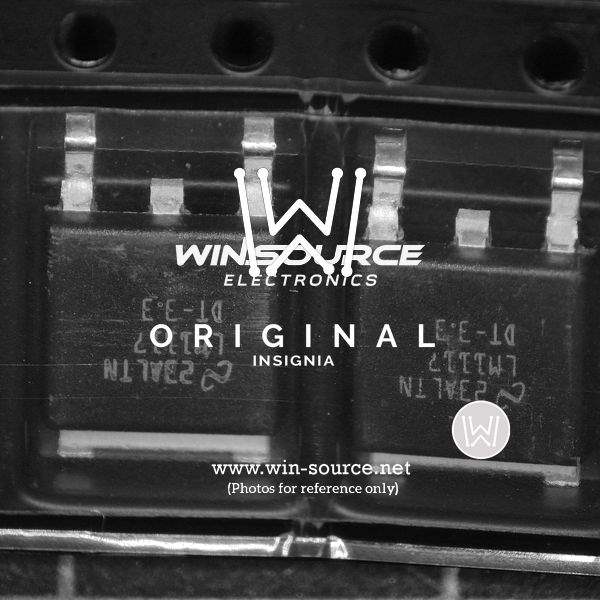

LM1117DT-3.3/NOPB Texas Instruments LM1117DT-3.3/NOPB Real Image LM1117DT-3.3/NOPB Real Image1 LM1117DT-3.3/NOPB Real Image2 LM1117DT-3.3/NOPB Real Image3
Same model may have multiple batches, images only for reference.
LM1117DT-3.3/NOPB Texas Instruments LM1117DT-3.3/NOPB Real Image LM1117DT-3.3/NOPB Real Image1 LM1117DT-3.3/NOPB Real Image2 LM1117DT-3.3/NOPB Real Image3
LM1117DT-3.3/NOPB Texas Instruments LM1117DT-3.3/NOPB Real Image LM1117DT-3.3/NOPB Real Image1 LM1117DT-3.3/NOPB Real Image2 LM1117DT-3.3/NOPB Real Image3
Same model may have multiple batches, images only for reference.

LM1117DT-3.3/NOPB

Part No LM1117DT-3.3/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 0.8A TO252-3
Datasheet
LM1117DT-3.3/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package TO-252-3
Win Source Part Number 206281-LM1117DT-3.3/NOPB
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian LM1117DT-3.3/NOPB CAD Model

Description

The LM1117DT-3.3/NOPB is a high-quality low-dropout voltage regulator designed by Texas Instruments.

  • Output Voltage: 3.3V
  • Output Current: 800mA
  • Dropout Voltage: 1.2V @ full load
  • Features: internal current limiting and thermal shutdown
  • Feature: ability to operate with small output capacitors.
  • Compatibility: compatible with low ESR ceramic capacitors
  • Package: TO-252 (3) package
  • Compliance: RoHS compliant
