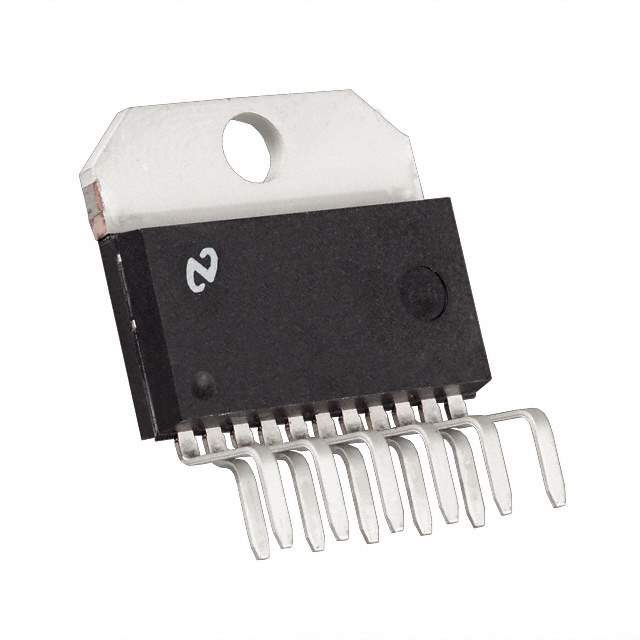

LM2409T Real Image
Same model may have multiple batches, images only for reference.

LM2409T

Part No LM2409T
Manufacturer Texas Instruments
Catalog PMIC - Display Drivers
Description IC DRIVER MONOLITHIC TO-220-11
Datasheet
LM2409T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Obsolete(EOL)
Display Type CRT
Operating Supply Current 8mA
Supply Voltage - Operating 60 V to 85 V
Temperature Range - Operating -20°C to 115°C
Mounting Through Hole
Case / Package TO-220-11
Win Source Part Number 071048-LM2409T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2409T CAD Model

Description

The LM2409T is a high-performance product designed and manufactured by Texas Instruments, a leading global semiconductor company known for its innovative and reliable products.

  • Type: Monolithic triple channel high voltage video amplifier integrated circuit
  • Bandwidth: 100 MHz
  • Voltage Capacity: Up to 80V
  • Power Consumption: Low
  • Package: TO-220
