Product Overview: LM2576HVT-15/LB03 from Texas Instruments

The LM2576HVT-15/LB03 is a robust and reliable voltage regulator integrated circuit designed by Texas Instruments, one of the leading manufacturers in the semiconductor industry. This product is part of the LM2576 series, which are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator capable of driving a 3A load with excellent line and load regulation.

Key Features

• Output Voltage: The LM2576HVT-15/LB03 is designed to deliver a fixed output voltage of 15V, making it suitable for a wide range of applications that require a stable voltage supply.
• Current Rating: It can provide a continuous output current up to 3A, which is ideal for powering medium to high-power devices.
• High Efficiency: With a typical efficiency of up to 77%, it ensures that energy loss through heat dissipation is minimized, making it an energy-efficient choice for electronic devices.
• Thermal Shutdown and Current Limit Protection: The built-in thermal shutdown and current limit protections safeguard the IC and the load from damage due to excessive temperature and overcurrent conditions.
• Voltage Range: The input voltage range is from 4V to 60V, providing flexibility in various power supply scenarios.
• Frequency: It operates at a fixed frequency of 52kHz, which allows for a reasonable balance between efficiency and the size of external components.

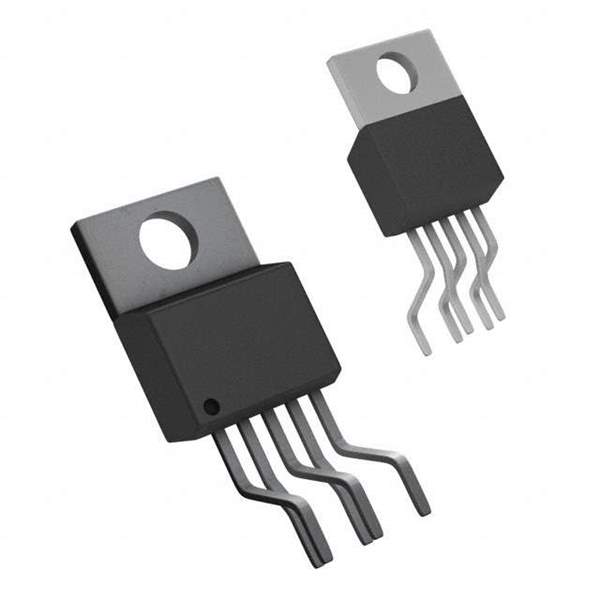

• Package: The LM2576HVT-15/LB03 is available in a TO-220 package, which is widely used and suitable for through-hole mounting, making it easy to integrate into a variety of circuit boards.

Applications

The LM2576HVT-15/LB03 is versatile and can be used in numerous applications such as:

• Simple high-efficiency step-down (buck) regulators
• Efficient pre-regulators for linear regulators
• On-card switching regulators for elimination of noise and distribution problems associated with single-point regulation
• Positive to negative converter (Buck-Boost)

With its ease of use, including a minimal number of external components, and its built-in features, the LM2576HVT-15/LB03 from Texas Instruments is an excellent solution for designers looking to implement a reliable power supply in their electronic projects.
