Product Overview: LM2596T-5.0/LF03 Voltage Regulator

The LM2596T-5.0/LF03 from Texas Instruments is a highly efficient, monolithic integrated circuit designed for voltage regulation. This regulator is part of the LM2596 series, which are step-down voltage regulators capable of driving a 3A load with excellent line and load regulation. The LM2596T-5.0/LF03 is specifically engineered to provide a fixed output voltage of 5.0V, making it an ideal choice for a wide array of applications that require a stable and regulated 5V supply.

Key Features

• Output Voltage: Fixed 5V output with a tolerance of ±4% over line and load conditions.
• Current Output: Capable of delivering 3A of continuous output current.
• Efficiency: High conversion efficiency up to 92%, which is beneficial for reducing heat dissipation and improving system reliability.
• Adjustable Output: Offers an adjustable version that allows the output voltage range from 1.2V to 37V when used with external resistors.
• Simplicity: Requires minimal external components for easy design and space-saving benefits.
• Thermal Shutdown and Current Limit: In-built protection features enhance the safety and longevity of the device.

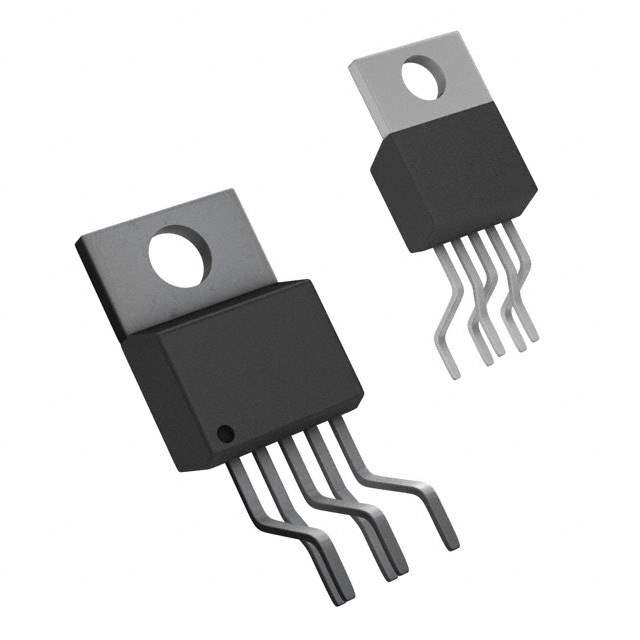

• Package: Available in a 5-lead TO-220 package that is suitable for standard mounting techniques and offers good thermal performance.

Applications

The LM2596T-5.0/LF03 is versatile and can be used in a variety of applications, including:

• Simple high-efficiency step-down (buck) regulators.
• Efficient pre-regulators for linear regulators.
• On-card switching regulators.
• Positive to negative converter (Buck-Boost).

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the LM2596T-5.0/LF03 is no exception. The device is designed to meet the rigorous standards set by the industry, ensuring a reliable performance in a wide range of environmental conditions.

Conclusion

Overall, the LM2596T-5.0/LF03 from Texas Instruments is a robust, efficient, and versatile voltage regulator that provides a fixed 5V output with high efficiency and reliability. Its ease of use, combined with its protection features, makes it an excellent choice for designers looking for a dependable power solution.
