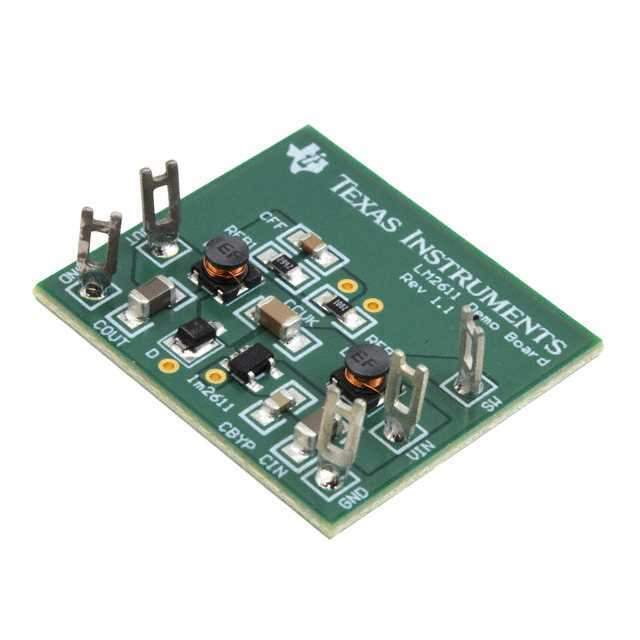

The LM2611EVAL from Texas Instruments is a meticulously designed evaluation board, crafted for engineers and developers to assess the performance and capabilities of the LM2611, a high-efficiency, step-up DC-DC converter. This evaluation board serves as a practical platform for testing the LM2611, which is particularly suitable for battery-powered and low-power applications.

With its small form factor and integrated features, the LM2611EVAL is an ideal tool for developers looking to create compact, energy-efficient products. The LM2611 chip itself is capable of operating from an input voltage as low as 2.8V and can provide an output voltage up to 14V, making it versatile for a wide range of applications, from portable devices to industrial equipment.

Key Features of the LM2611EVAL:

• Pre-Assembled Evaluation Board: The LM2611EVAL comes ready to use, allowing for immediate testing and experimentation without the need for complex setup procedures.
• Adjustable Output Voltage: Users can easily set the desired output voltage to match their specific requirements, offering flexibility in application design.
• High-Efficiency Operation: The LM2611 converter is designed for high efficiency, which is critical for extending battery life in portable applications.
• Thermal Protection: The board includes thermal shutdown protection, ensuring safe operation under various conditions.
• Low-Power Shutdown Mode: To conserve energy, the LM2611 can enter a low-power mode that significantly reduces the operating current.

The LM2611EVAL provides all the necessary test points and jumpers for comprehensive evaluation. It includes a detailed user guide that outlines the setup and operation procedures, ensuring a smooth evaluation process. Whether for rapid prototyping or in-depth performance analysis, the LM2611EVAL from Texas Instruments is an invaluable asset for any project requiring a reliable and efficient step-up voltage conversion solution.
