Product Overview

The LM2671LD-12/NOPB is a highly efficient, SIMPLE SWITCHER® step-down voltage regulator designed and manufactured by Texas Instruments. This product offers a compact and reliable solution for applications requiring a regulated 12V output from a higher voltage input. Its innovative design ensures minimal power loss and heat generation, making it an excellent choice for power-sensitive devices.

Key Features

• Output Voltage: The LM2671LD-12/NOPB provides a fixed output voltage of 12V, which is ideal for a wide range of electronics that require a stable power supply.
• High Efficiency: With an efficiency rating of up to 92%, this voltage regulator ensures that energy consumption is kept to a minimum, prolonging battery life in portable applications and reducing thermal stress in the system.
• Adjustable Switching Frequency: The switching frequency can be adjusted up to 500 kHz, allowing flexibility in design and the use of smaller, more cost-effective components.
• Current Limiting and Thermal Shutdown: Built-in current limiting and thermal shutdown features protect the device and the system from damage due to over-current and over-temperature conditions.
• Low Dropout Operation: The LM2671LD-12/NOPB is capable of maintaining output regulation during low dropout conditions, making it suitable for applications with a narrow input-to-output voltage differential.

Applications

The LM2671LD-12/NOPB is versatile and can be used in various electronic applications such as:

• Power supply for 12V logic circuits
• Automotive accessories
• Telecommunications equipment
• Portable devices and battery-powered applications
• Industrial control systems

Package and Quality

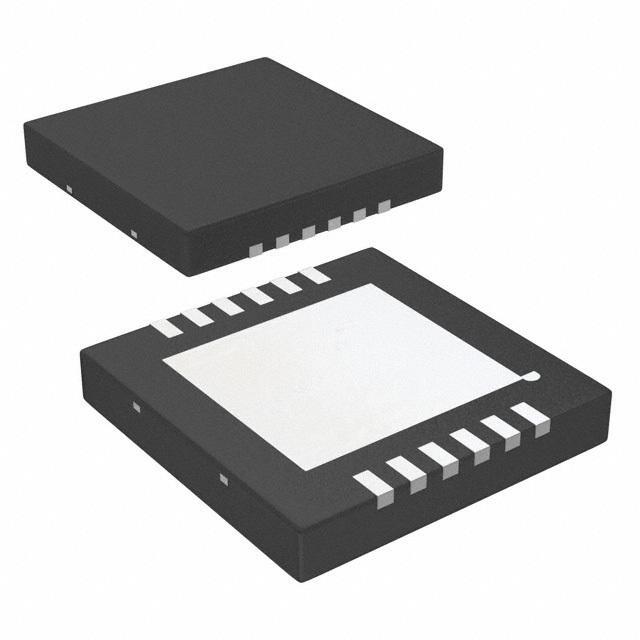

Encased in a 14-pin WSON package, the LM2671LD-12/NOPB is designed for surface mount technology, making it suitable for automated assembly processes. The device is lead-free and RoHS compliant, adhering to environmental standards. Texas Instruments' commitment to quality ensures that each unit is rigorously tested for performance and reliability.

With its combination of efficiency, protection features, and versatility, the LM2671LD-12/NOPB from Texas Instruments stands out as a superior choice for designers looking to optimize their power management solutions.
