The LM2791LD-L is a high-performance, chip-scale LED driver designed by Texas Instruments to provide an efficient and compact solution for driving LEDs in portable applications. This device is particularly suited for small form-factor devices such as mobile phones, handheld gaming devices, and personal media players where space is at a premium and power efficiency is crucial.

Key Features

• Adjustable Output Voltage: The LM2791LD-L features an adjustable output voltage that can be tuned to match the voltage requirements of the LED being used, ensuring optimal performance and power efficiency.
• High Efficiency: With its high-efficiency step-up converter design, the LM2791LD-L maximizes battery life by converting a lower voltage from the battery to the higher voltage needed to drive LEDs.

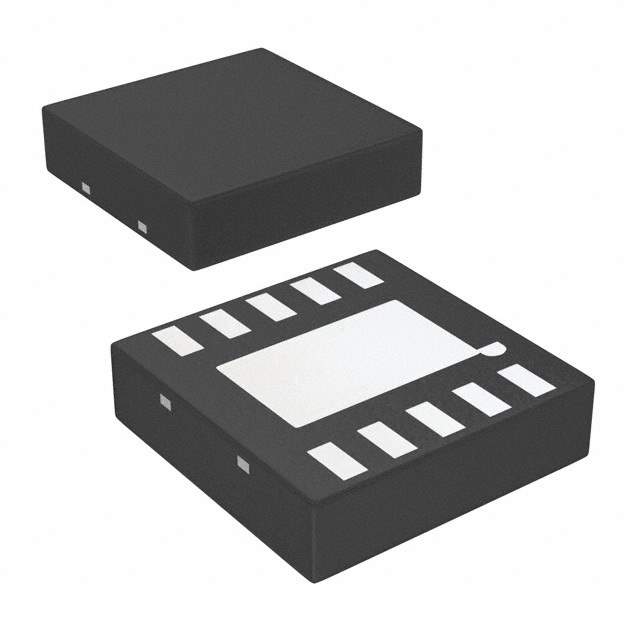

• Small Footprint: The device comes in a micro SMD package, making it an ideal choice for space-constrained applications. Its small size does not compromise its performance or functionality.
• Low Shutdown Current: It features a low shutdown current which further extends battery life when the LED is not in use.

Applications

The LM2791LD-L is versatile and can be used in a variety of applications where LED backlighting is required. Its primary applications include:

• Backlighting for LCD displays in portable devices
• Keypad backlighting for mobile phones and other handheld devices
• General LED lighting applications requiring a compact and efficient driver solution

Technical Specifications

Some of the technical specifications of the LM2791LD-L include:

• Input Voltage Range: 2.7V to 5.5V
• Adjustable Output Voltage up to 17V
• High-Frequency Operation: 1MHz (typical)
• Low Profile Micro SMD Package

In summary, the LM2791LD-L from Texas Instruments is a powerful, efficient, and space-saving LED driver solution that meets the demands of modern portable electronics. It offers designers the flexibility and performance needed to create innovative products with outstanding visual displays and extended battery life.
