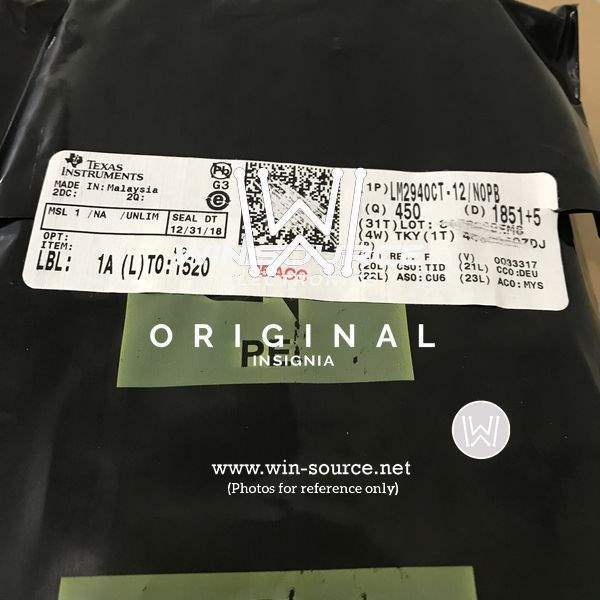

LM2940CT-12/NOPB Real Image LM2940CT-12/NOPB label picture
LM2940CT-12/NOPB Real Image LM2940CT-12/NOPB label picture
Same model may have multiple batches, images only for reference.

LM2940CT-12/NOPB

Part No LM2940CT-12/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 12V 1A TO220-3
Datasheet
LM2940CT-12/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 26V
Nominal Output Voltage (Min/Fixed) 12V
Dropout Voltage-Max 0.8V @ 1A
Output Current 1A
Operating Supply Current 10mA to 15mA
PSRR 66dB (120Hz)
Control Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 12V
Voltage - Dropout (Typical) 0.5V @ 1A
Mounting Through Hole
Case / Package TO-220-3
Win Source Part Number 019003-LM2940CT-12/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2940CT-12/NOPB CAD Model

Description

The LM2940CT-12/NOPB is a high-quality, low-dropout voltage regulator designed and manufactured by Texas Instruments, a global leader in semiconductor technology.

  • Output Voltage: 12V
  • Maximum Output Current: 1A
  • Input Voltage Range: 14.5V to 26V
  • Dropout Voltage: Low
  • Transient Response: Excellent
  • Safety Features: Thermal shutdown and current limit
  • Package: TO-220
