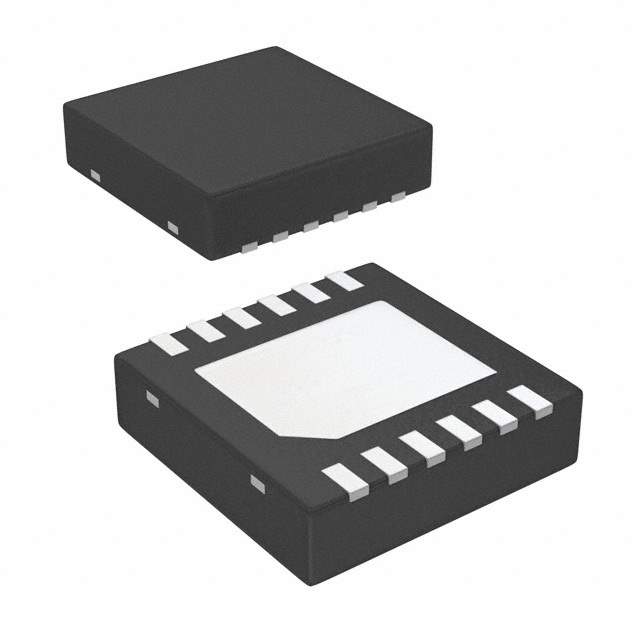

LM3430SDX/NOPB

Part No LM3430SDX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER CTRLR DIM 12WSON
Datasheet
LM3430SDX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Controller
Topology SEPIC, Step-Up (Boost)
Number of Outputs 1
Operating Input Voltage(Min) 6V
Maximum Supply Voltage 40V
Frequency 2MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 12-WSON (3x3)
Win Source Part Number 140606-LM3430SDX/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3430SDX/NOPB CAD Model

Description

The LM3430SDX/NOPB is a high performance product from Texas Instruments (TI), a renowned global semiconductor company that designs, manufactures, tests, and sells analog and embedded processing chips.

  • Type: adaptive constant on-time DC/DC buck (step-down) constant current controller designed to drive high brightness LEDs
  • Input voltage range: 6V to 75V
  • Can drive: up to 10 LEDs in series
  • Incorporates: a high-side current sense
  • Features: thermal shutdown protection
  • Features: under-voltage lockout (UVLO) feature
  • Package: 8-pin WSON
